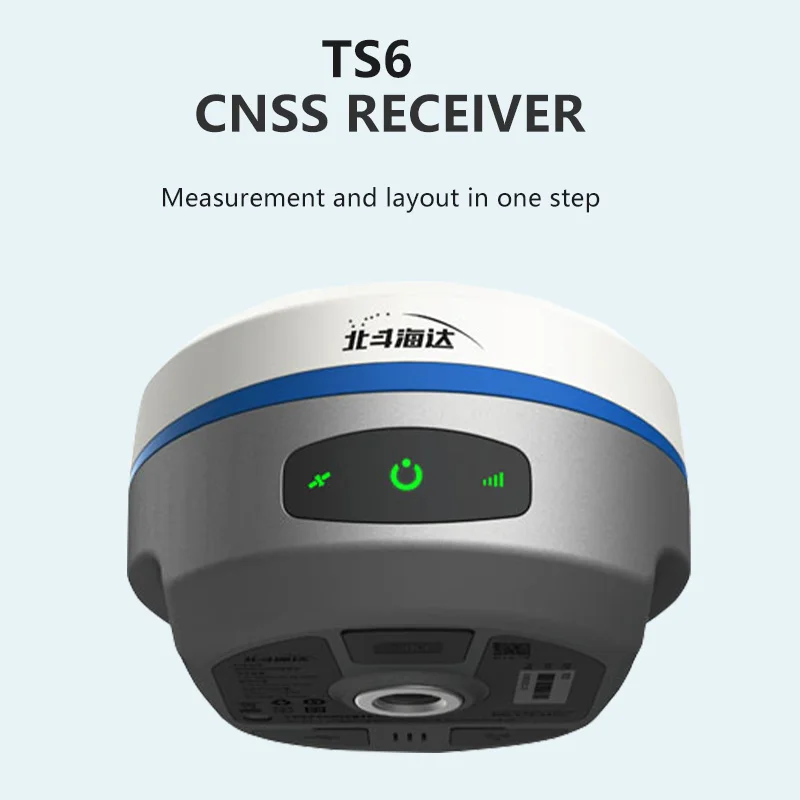

TS6 technical specifications |
| GNSS configuration | Number of channels :660 |
| BDS:B1I,B2I,B3I,B1C,B2a |
| GPS:L1,L2,L5 |
| GLONASS:L1,L2 |
| GALILIEO:E1,E5a,E5b |
| QZSS:L1,L2,L5 |
| SBAS: :L1,L2,L5 |
| Output format ASCII | NMEA-0183, binary code |
| Positioning output frequency | 1Hz~20Hz |
| Static data format | GNS, Rinex dual-format static data |
| Difference scheme | RTCM2.X,RTCM3.X |
| Network mode | VRS, FKP, MAC; Supports the NTRIP protocol |
| System configuration | Operating system | Linux operating system |
| | |
| Data storage | Built-in 8GB ROM, support static data automatic cyclic storage |
| Accuracy and reliability | RTK positioning accuracy | Plane: ± (8+1×10-6D) mm (D is the distance between measured points) |
| Elevation: ± (15+1×10-6D) mm (D is the distance between measured points) |
| Static positioning accuracy | Plane: ± (2.5+0.5×10-6D) mm (D is the distance between measured points) |
| Elevation: ± (5+0.5×10-6D) mm (D is the distance between measured points) |
| DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm; |
| Elevation accuracy: ±0.50m+1ppm |
| Positioning accuracy of SBAS | 0.5M |
| Initialization time | < 10 seconds |
| Initialization reliability | > 99.99% |
| Accuracy and reliability | Inclination measurement accuracy | 8mm+0.7mm/°tilt |
| Image lofting accuracy | Typical accuracy: 2cm |
| Image measurement accuracy | 2cm ~ 4cm |

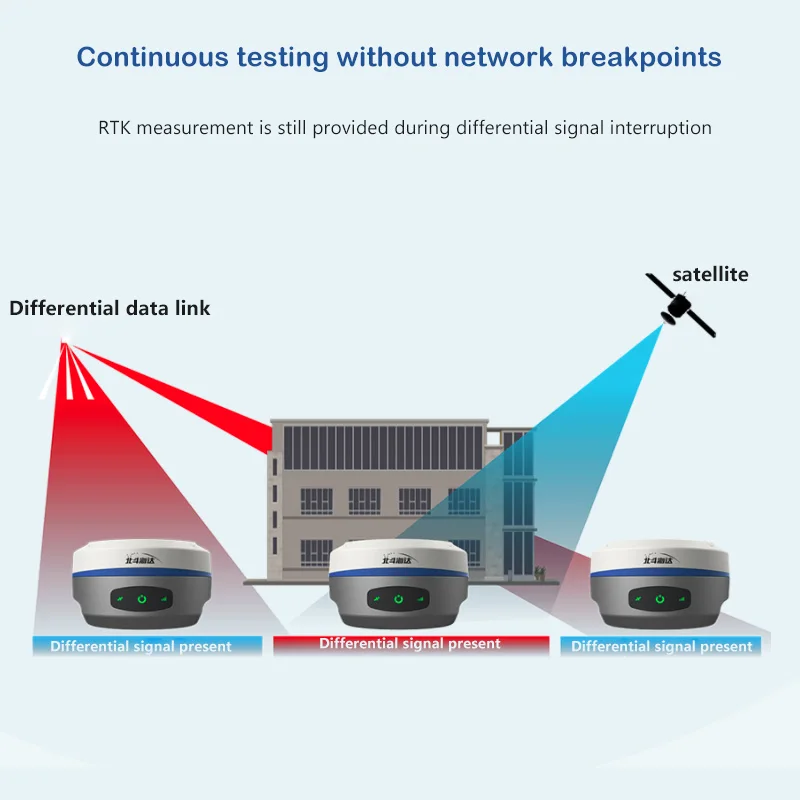

| Breakpoint continuation | RTK measurements are still provided during differential signal outages |

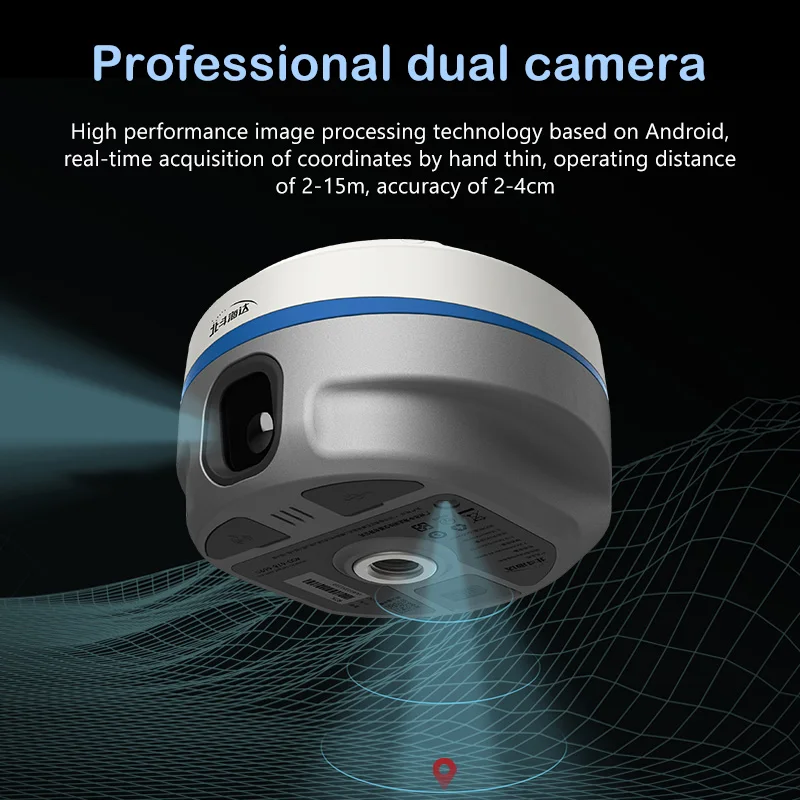

| camera | Pixel: | Professional double HD camera, 2MP & 5MP |
| Function: | Support real scene lofting, image measurement, working distance 2~15m |
| Communication unit | I/O port | USB Type-C port, SMA port |
| WiFi communication | 802.11a /b/g/n access point and client mode to provide WiFi hotspot services |
| Bluetooth communication | Bluetooth® 4.2/2.1+EDR,2.4GHz

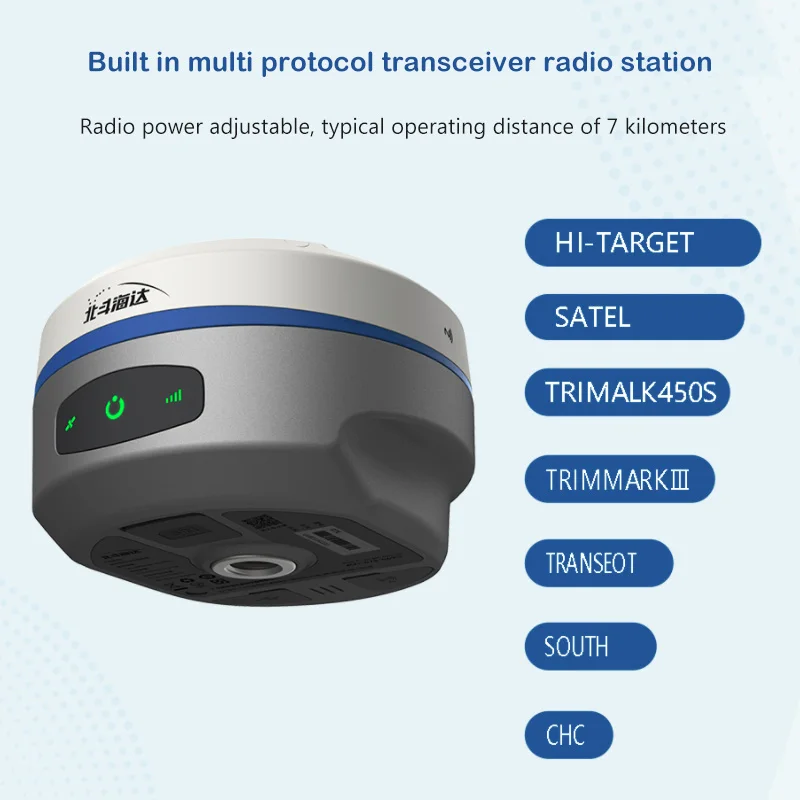

Built-in radio |
| Built-in radio | Power: 0.5W/1W/2W adjustable |
| Frequency band: 410MHz to 470MHz |
| Protocol: HI - TARGET, TRIMTALK450S TRIMMARK,Ⅲ TRANSEOT, SOUTH, CHC |
| Number of channels: 116 (16 of which are configurable) |

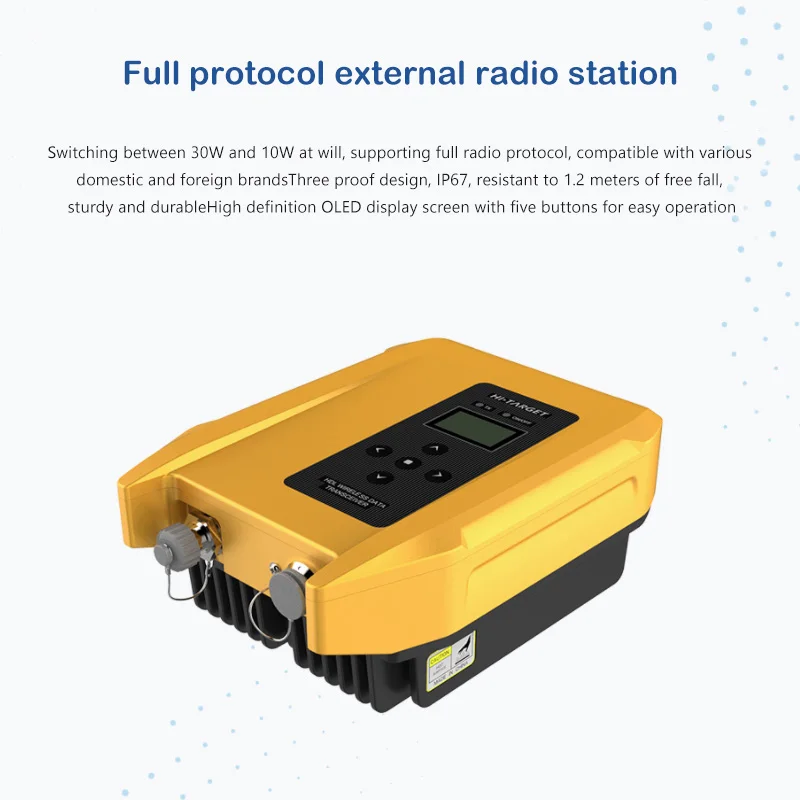

| Communication unit | Radio HDL460A | Power: 10W/30W adjustable, frequency band: 403~473MHz |
| Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKⅢTRANSEOT, SOUTH, CHC, SATEL |
| Number of channels: 116 channels (16 of which are configurable) |
| Transmission rate: 19.2kbps, 9.6kbps adjustable |
| Sensor | Electron bubble | Realize intelligent alignment |
| Tilt measurement | Built-in high precision inertial navigation, automatic attitude compensation, 8mm+0.7mm/°tilt (accuracy < 2.5cm within 30°) |
| User interface | Button | One power button |
| LED cue light | Satellite lights, signal lights, power lights |
| WEB UI | Built-in WEB page, receiver Settings, status view |
| Functional application | Advanced function | OTG function, NFC flash link, WebUI interaction, USB flash drive firmware upgrade |
| Intelligent application | Smart base station, smart voice, function self-check, smart CORS |
| Remote service | Message push, online upgrade, remote control |
| Cloud service | Equipment management, location services, collaborative work, data analysis |
| Physical characteristics | Main engine battery | High capacity lithium battery 6800mAh, working time better than 13 hours |
| External power supply | USB 15W charging |
| Dimension | Φ130mm×79mm |
| Weight | ≤0.97kg |
| Power consumption | 2.6W |
| Material | The shell is made of magnesium alloy |
| Environmental characteristics | Dustproof and waterproof | IP68 |
| anti-fall | Resist natural drop of 2 meter high measuring rod |
| Relative humidity | 100% non-condensing |
| Operating temperature | -45℃~+75℃ |
| Storage temperature | -55℃~+85℃ |
