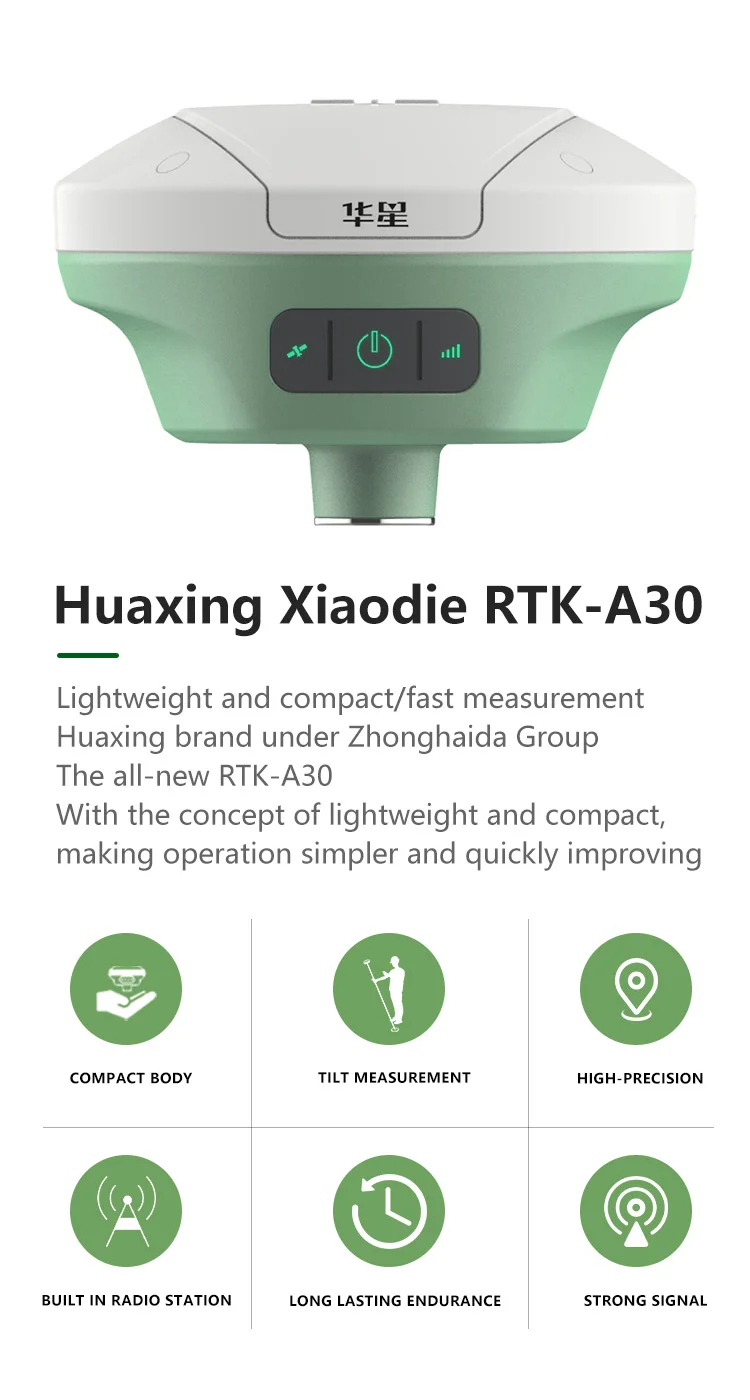

GNSS RTK Hi -target A30 Base and Rover upgrade for land surveying instruments

Ask Lasest Price
Brand Name :	Hi-target
Model Number :	A30
Price :	$1,600.00
Payment Terms :	L/C, T/T
Supply Ability :	1 ~ 30 day
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

GNSS RTK Hi -target A30 Base and Rover upgrade for land surveying instruments

GNSS RTK Hi -target A30 Base and Rover upgrade for land surveying instruments

Products Description

GNSS configuration
Channel parameters	1408
BDS	B1I,B2I,B3I, B1C, B2A
GPs	L1,L2,L5
GLONASS	L1,L2
GALILIEO	E1,E5a,E5b
QZSS	L1, L2, L5
SBAS	support
output format	ASCII: NMEA-0183, binary code
Positioning output frequency	1Hz-20Hz
static data format	GNS, Rinex Dual Format Static Data
Differential format	CMR, RTCM2X, RTCM3.0, RTCM3.2
network mode	VRS, FKP, MAC; support NTRIP protocol
System Configuration
operating system	Linux
Start Time	3s
data storage	Built-in 8G BROM, support automatic cycle storage of static data
Accuracy and Reliability
rtk positioning accuracy	flat: ±(8+1*10-6D)mm (D is the distance between the measured points)	Elevation:±(15+1*10-6D)mm ( D is the distance between the measured points)
Static positioning accuracy	flat: ±(2.5+0.5*10-6D)mm (D is the distance between the measured points)	Elevation:±(5+0.5*10-6D)mm ( D is the distance between the measured points)
DGPS positioning accuracy	flat: ±0.25m+1ppm	Elevation: ±0.5m+1ppm
SBAS positioning accuracy	0.5m
initialization time	< 10s
Initialize reliability	>99.99%
Communication unit
I/O terminal	USB Type-c interface, SMA interface
Built-in network	Built-in eSIM card, including 3 years of Internet access fee, you can connect to the Internet when you turn it on
WiFi communication	802.11 a/b/g/n access point and client mode for WiFi hotspot service
Bluetooth communication	Bluetooth. 4.2/2.1+EDR, 2.4GHz

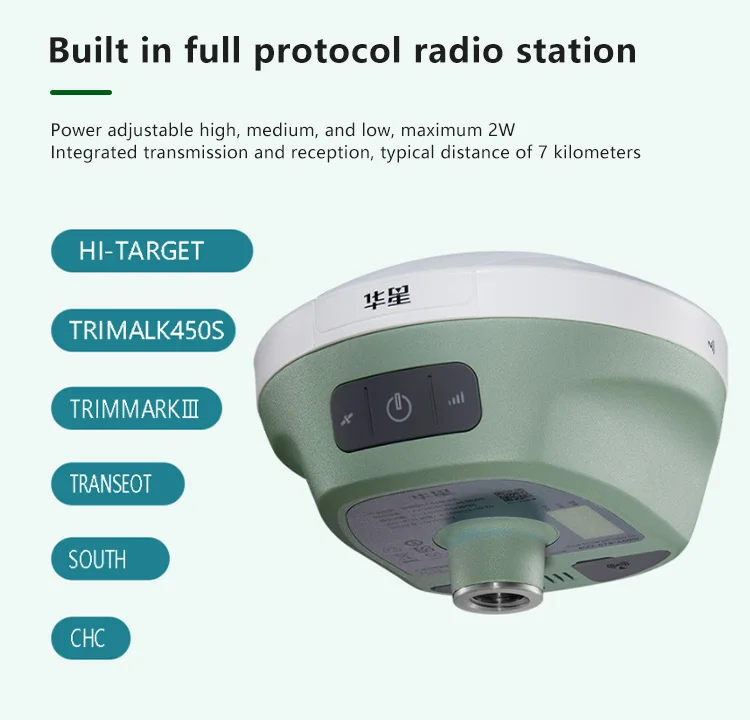

Built-in radio	Built-in transceiver	power:0.5W/ 1W/ 2W
	frequency band:410MHz-470MHz	number of channels: 116 ( 16 of them are configurable)
	protocol:HI- TARGET,TRIMTALK450s, TRIMMARKIII, TRANSEOT, SOUTH, CHC
Sensor
electronic bubble	Achieve smart centering

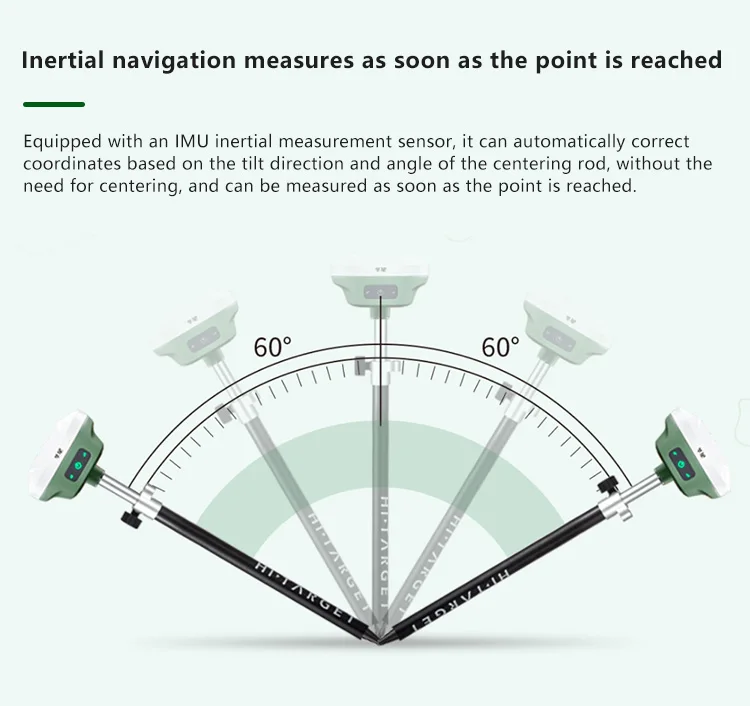

Inclination measurement	Built-in high-precision inertial navigation, automatic attitude compensation, accuracy: 8mm+0.7mm/°tilt (accuracy within 30°<2.5cm)
User Interface
button	a power button
LED indicator light	Satellite lights, signal lights, power lights
Functional application
Advanced Features	NFC IGRS, WebUI interaction, U disk firmware upgrade
Smart application	Intelligent base station, intelligent voice, function self-test, intelligent CORS
Remote Service	Message push, online upgrade, remote control
Cloud service	Device management, location services, collaborative work, data analysis
Physical properties
Host battery	Built-in high-capacity lithium battery 6800mAh/7.4V, the working time of the network mobile station is better than 10 hours
External power supply	Support USB port charging and external power supply
size	⏀132mm*67mm
weight	≤0.82kg
Power consumption	4.2W
Material	The shell is made of magnesium alloy material
Environmental characteristics
Waterproof and dustproof	IP68
Anti-drop	Anti-2 meters high measuring rod natural drop
Relative humidity	100%Does not condense
Operating temperature	-30°c～+70°c
Storage temperature	-40°c~+80°c

GNSS RTK Hi -target A30 Base and Rover upgrade for land surveying instruments
