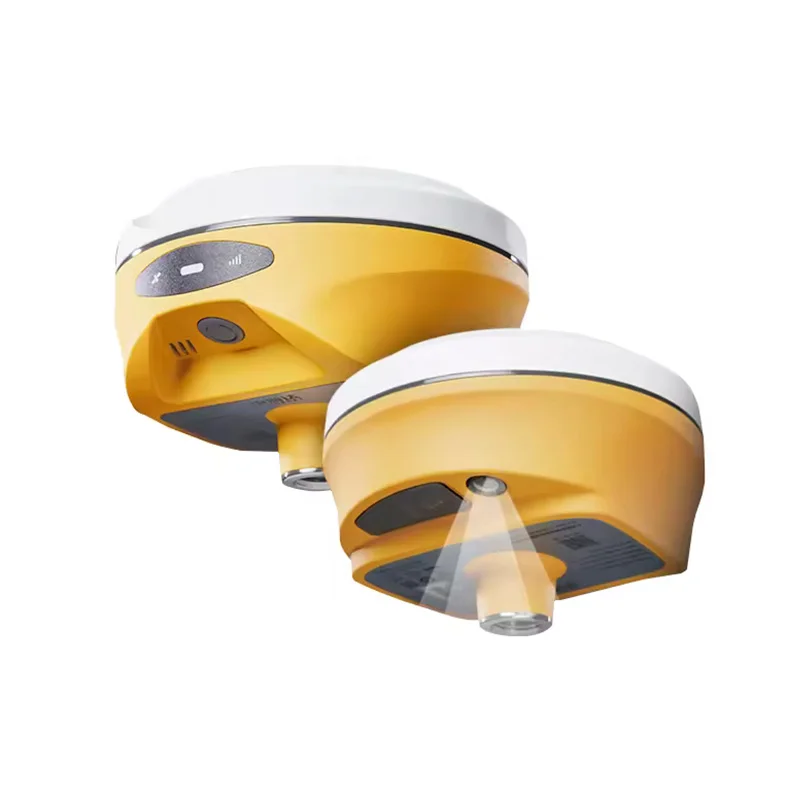

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

Ask Lasest Price
Brand Name :	Hi-target
Model Number :	V300
Price :	$2,800.00
Payment Terms :	L/C, T/T
Supply Ability :	1 ~ 30 day
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

Overview

Product Display

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

Technical Parameters

GNSSconfiguration	System kernel	Using multi-star system core
	Number of channels	800
	BDS	B1,B2,B3
	GPS	L1,L2,L5
	GLONASS	L1,L2
	GALILEO	E1,E5a,E5b
	SBAS	yes
	Output format	ASCII: NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Differential support	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Static format support	GNS, Rinex dual format static data
	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points)
	Static positioning accuracy	Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm
	SBAS positioning accuracy	0.5m
	Initialization time	<10 seconds
	Initialization reliability	＞99.99%
Built-in communication	network	Built-in 4G full Netcom network communication
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	Built-in Bluetooth
	Built-in transceiver
	Power	1W/2W/5W adjustable
	frequency band:	403MHz-473MHz
	Transmission rate	19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable
External radio	Power	功率:5W/10W/20W/30W adjustable
	frequency band:	403MHz~473MHz
	Transmission rate	19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable
User Interface	panel	Single button
	Indicator light	Satellite lights, signal lights, power lights
	Display screen	Industrial-grade OLED HD color display, capacitive touch screen
Advanced application	iPOWER smart balance technology, LBS, NFC
	Smart service	Voice broadcast, voice guidance, function self-check, DIY voice
	Remote Service	Remote upgrade, remote registration, remote data download
Electrical physical properties	battery	High capacity lithium battery 6800mAh/piece (Standard 2 pieces) with power display light, removable Single battery network mobile station continuously working formore than 10 hours
	Input voltage	DC 6~28VDC, with over-discharge protection
	size	Φ158mm×68mm
	weight	≤1.2kg (including battery)
	Power consumption	4.2W
	material	Shell is made of magnesium alloy material
Environmental characteristics	Dust and water release	P67, can resist temporary immersion under 2 meters water, completely prevent dust from entering
	Anti-fall	Resistance to natural drop of 3 meters
	Operating temperature	-40℃~75℃
Operating hand thin
System Configuration	model	iand3.0
	operating system	Android 6.0 operating system
	processor	1.5G, quad-core processor
	storage	2GB RAM+16GB ROM; support T-Flash memory card, support up to 128GB
	display	3.7 inch color capacitive touch screen
	enter	Physical full keyboard
Communication configuration	Cellular mobile	Built-in 4G full Netcom, dual card dual standby
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	Built-in Bluetooth
	NFC	Support NFC IGRS
	USB	USB Type C interface,Support OTG function
Power performance	Built-in battery	Removable lithium battery 3.7V/5200mAh, supports fast charging (charging time is less than 3 hours)
Power performance	Working time	A single battery can work continuously for 15 hours
Physical properties	size	208mm×83mm×24mm
	Weight	0.44g (battery)
	Operating temperature	20℃C-+55℃
