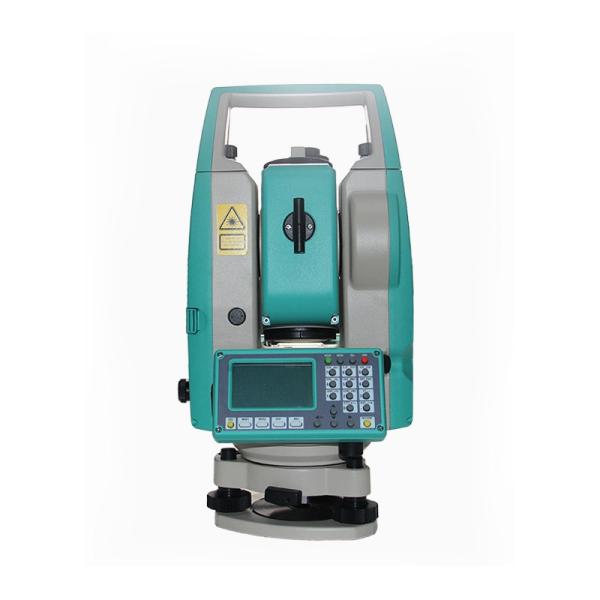

RUIDE Land Survey Robotic Total Station Instrument No Prism

Ask Lasest Price
Brand Name :	Ruide
Model Number :	RTS-822R10X
Price :	＄1,500.00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

RUIDE Land Survey Robotic Total Station Instrument No Prism

RUIDE RQS/RTS-822R10X total station no-prism 1000m and 2'' accuracy for land surveying

Specification

Ruide Total Station
Model	RQS
TELESCOPE
Length	154mm
Objective Lens Diameter	Telescope:45mm Distance Meter: 50mm
Magnification	30X
Image	Erect
Field of View	1°30’
Resolving Power	3"
Min. Focus	1.0m
DISTANCE MEASUREMENT
Single Prism	5000m*1
Non-prism	600m*2
Accury -Prism Mode	±(2mm+2ppm x D) m.s.e*3
-Non-prism Mode	±(3mm+2ppm x D) m.s.e*3
Measuring Time	Fine:0.6s,Normal: 0.5s
Meteorologic Correction	ATMOSense (Auto Sensing)
Prism Constant	Manuual Input
ANGLE MEASUREMENT
Method	Absolute Encoding
Detecting System	H: 2 sides,V:2 sides
Min. Reading	1"/5"
Accuracy	2"
Diamater of Circle	79mm
Vertical Angle 0°	Zenith 0°/ Horizontal: 0°
Unit	360°/400gon/6400mil
DISPLAY
Display Unit	Graphic LCD 160 x 90 Dots with White Backlight
No. of Unit	2 sides
Keyboard	Alphanumeric Key
TILT CORRECTION
Tilt Sensor	Dual Axis
Method	Liquid Electric
Range	±4'
Setting Unit	1″
LEVEL SENSITIVITY
Plate Level	30″/2mm
Circular Level	8'/2mm
OPTICAL PLUMMET (OPTIONAL:INTERNAL LASER PLUMMET)
Image	Erect
Magnification	3X
Focusing Range	0.3m~∞
Field of View	5°
DATA STORAGE & INTERFACE
Internal Memory	>10,000 points or >20,000 coordinates
Data Interface	RS 232/SD-card/Mini-USB
GENERAL
Guide Light	No
Weight & Dimension	5.4kg,340mm(H) x 160mm(W) x 150mm(L)
Working Temperature	-20℃~+50℃
Batter Type	Rechargeable Li-on Battery 3000mAh
Batter Voltage	DC 7.4V
Working Time	16h

RUIDE Land Survey Robotic Total Station Instrument No Prism
