| Brand Name : | Kolida |
| Model Number : | KTS-462R4L |
| Price : | ＄1,400.00 |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 30 work day |

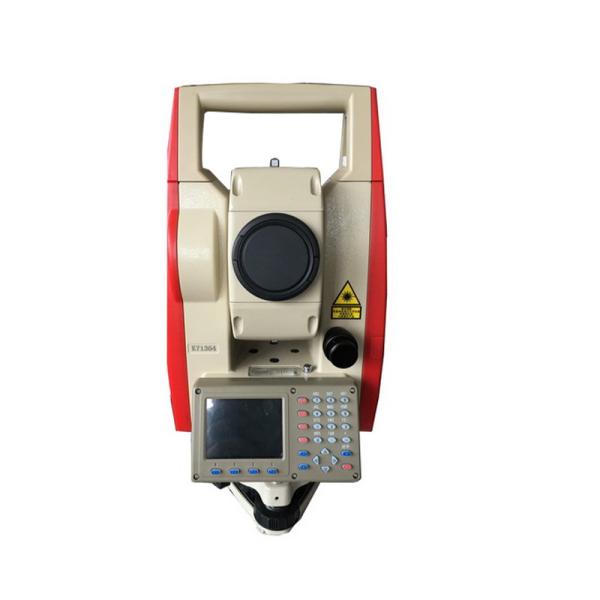

Kolida Low Price Total Station KTS-462R4L 400m Prismless
Specification
| Models and technical parameters | 462LL | 462R4L | 462R6L | 462R8L | 462R10L | |
| Distance measurement | With prism | 5000m | ||||
| Without prism | 400m | 600m | 800m | 1000m | ||
| Measurement Time | Fine:0.3s, Tracking: 0.1s | |||||
| Accuracy | 2mm+2ppm(with prism), 3mm+2ppm(without prism) | |||||
| Angle measurement | Angle measurement mode | Absolute angle encoder system | ||||
| Minimum reading | 0.1" /1" /5" Optional | |||||
| Accuracy | 2" | |||||
| Telescope | Image | Erect | ||||
| Magnification | 30X | |||||
| Objective aperture | Telescope: 45mm, Distance Meter: 50mm | |||||
| Field of view | 1 30' | |||||
| Minimum of focusing distance | 1.0m | |||||
| Resolution | 3" | |||||
| Compensation | System | Dual-Axis Liquid-Electric Sensor Compensation | ||||
| Range | 6' | |||||
| Accuracy | 1' | |||||
| Level | Plate level | 30"/2mm | ||||
| Circular level | 8'/2mm | |||||
| Laser Plummet | Accuracy | 1.5mm (in 1.5m) | ||||
| Laser spot Diameter | 2.5mm (in 1.5m) | |||||
| Display | Type | 2.8" LCD Color Screen 240*320dpi | ||||
| Power | Battery | Rechargeable Li-ion battery | ||||
| Voltage | DC 7.4V | |||||
| Continue Working Time | 25hours | |||||
| Weight | 5.2kg | |||||
| Size | 160*150*335mm | |||||
