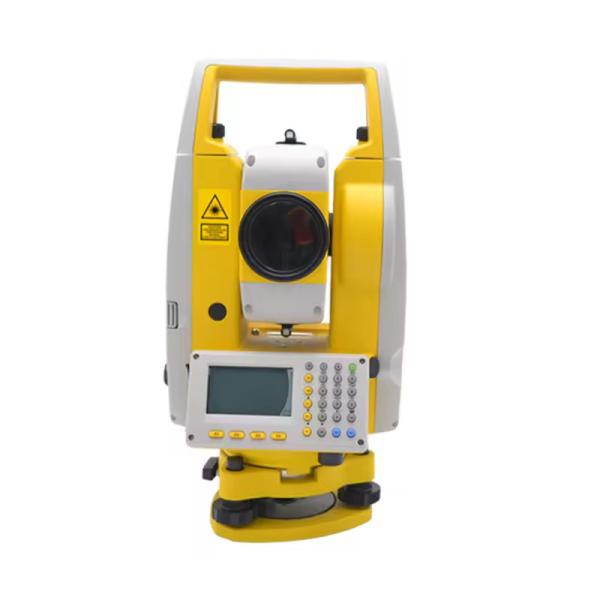

SOUTH Automatic Robotic Total Station Surveying instrument NTS-332R15B

Ask Lasest Price
Brand Name :	SOUTH
Model Number :	NTS-332R15B
Price :	＄1500.00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

SOUTH Automatic Robotic Total Station Surveying instrument NTS-332R15B

Surveying Equipment SOUTH Total Station NTS-332R15B Automatic Total Station

Product Description

SOUTH Automatic Robotic Total Station Surveying instrument NTS-332R15B

Specification

Ultra-fast measurement
A new generation of distance measuring technology, speed improvement, reliable accuracy
Continuous 0.25s Tracking 0.1s Single 1.0s

Multiple data transmission methods
U-disk, Bluetooth transmission, simple and efficient

One key measurement
Red quick measuring key, one key to any measuring interface.

High-definition and bright screen
Increased key size, optimised software, easy to operate
3.1-inch high-definition display with backlight Up to 8 lines of display

Abundant Measurement Programmes
A wide range of measurement programmes combined in one to meet multidimensional applications.

Distance Measurement	Reflectorless	1500m
	Single Prism	5000m
	Accuracy: Non Prism	3+2ppm
	Accuracy: Prism	2+2ppm
	Sheet	3+2ppm
	Measurement Time	1s in fine 0.1s in tracking
	Atmospheric Correction	Manual input, Auto correction
	Prism Constant	Manual input, Auto correction
	Temperature Correction	Manual input, Auto correction
	Distance Reading	Max: 99999999.999 Min: 1mm
Angle Measurement	Accuracy	2"
	Method	Absolute, continuous
	Disk Diameter	79mm
	Detection Method	V: Dual, H: Dual
	Angle Reading	Min: 1"
Telescope	Image	Erect
	Tube Length	152mm
	Effective Aperture	Farsightedness:45mm (ranging:47mm)
	Magnification	30x
	Field Of View	1°30'
	Resolving Power	3"
	Minimum Focus Distance	1.5m
	Muitiple/Additive Constant	100/0
Operation System	Memory	16000 points
Compensator	System	Liquid, Dual axis
	Working Range	±6'
	Accuracy	1"
Plummet	Laser Plummet (Default)
	Accuracy	±1.5mm @1.5m
	Laser Brightness	5 levels adjustable
	Wavelength	635nm
	Laser Class	Class 2
	Laser Power	0.5mW
	Optical Plummet (Optional)
	Image	Erect
	Magnification	3x
	Focusing Range	0.5m ~ ∞
	Field Of View	5°
Keyboard And Display	Keyboard	Alphanumeric 28 Keys
	Display	3.1 inch LCD
	Resolution	160*96 dp
	Position	Face 1, Face 2
Interface	Data Interface	USB Flash Disk
Battery	Type	Lithium
	Voltage	7.4V
	Operating time	8 hours
Vial	Plate Vial	30" /2mm
Vial	Circular Vial	8' /2mm
General	IP Rate	IP55
	Temperature Range	-20°C -- +50°C
	Dimension	206180353mm
	Weight	5.4kg
