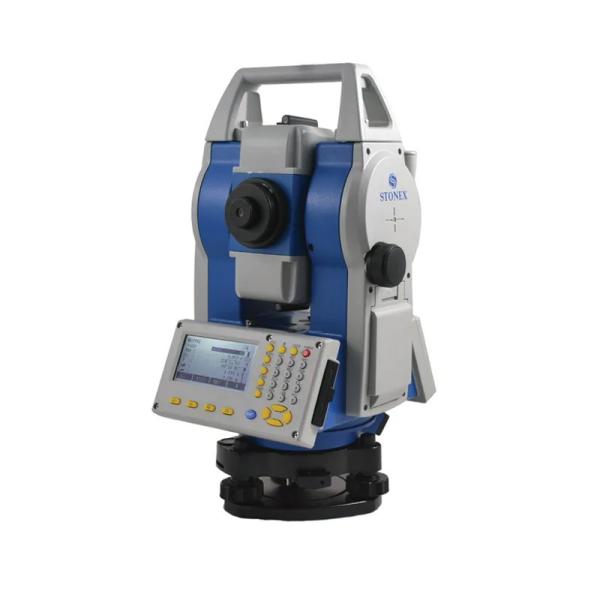

OEM STONEX R2 Measurement Total Robotic Station Survey Equipment

Product Categories

Chengdu Jiebo Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

OEM STONEX R2 Measurement Total Robotic Station Survey Equipment

Ask Lasest Price
Brand Name :	Stonex
Model Number :	R2
Price :	＄1,850.00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

OEM STONEX R2 Measurement Total Robotic Station Survey Equipment

Product Description

Surveying instrument 2'' accuracy total station color screen R2 total station stonex

* Long measuring distance (800 meters without prism)
Using digital phase laser ranging technology, it can achieve high-precision measurement of long-distance targets in prism-free mode, ranging up to 1000 meters; single prism 5000 meters.

* Fast measure speed
Equipped with a new fast digital ranging lens and applying a new ranging technology, it can achieve a single precise measurement of 0.8' and a tracking of 0.3', effectively ensuring the measurement efficiency.

*One-click measurement
When the instrument is measuring, the eye does not need to leave the telescope, and the measurement can be completed with one key. One-key measurement has little impact on measurement operations and can ensure the accuracy of measurement work.

*Dual axis compensation
The fully automatic dual-axis compensator, combined with the visual display of the electronic bubbles, can achieve precise leveling and ensure the accuracy of the horizontal position.

OEM STONEX R2 Measurement Total Robotic Station Survey Equipment

Specification

Model	R2
Telescope	Mirror tube length	156mm
	imaging	Positive
	Effective diameter of objective lens(EDM)	45mm
	Magnification	30X
	field	1°30′
	Discrimination (JIS)	3.5″
	Shortest range of visibility	1.0m
Range finder	Ranging light source	(visible lase)650~690nm
	Spot diameter	12mm/50mm ellipse
	Laser grade	Class3
	Measuring range(good weather condition)	Non-prism	600m
		Reflector RP60	1000m
		Mini prism	1200m
		Single prism	5000m
	Precision of distance measurement	Prism	±(2+2×10-6·D)mm
		Reflector,Non-prism	±(3+2×10-6·D)mm
	Measurement time	1.0s/0.3s(precision / tracking); initial:2.5s
	Minimum reading of distance measurement	Precision measurement mode:1mm
		Tracking measurement mode:10mm
	Range of temperature setting	-40ºC~+60ºC
	temperature range	1ºC(automatic correction)
	Atmospheric correction	500hPa-1500 hPa
	atmospheric pressure	1hPa(automatic correction)
	Prism constant correction	-99.9mm ~ +99.9mm
