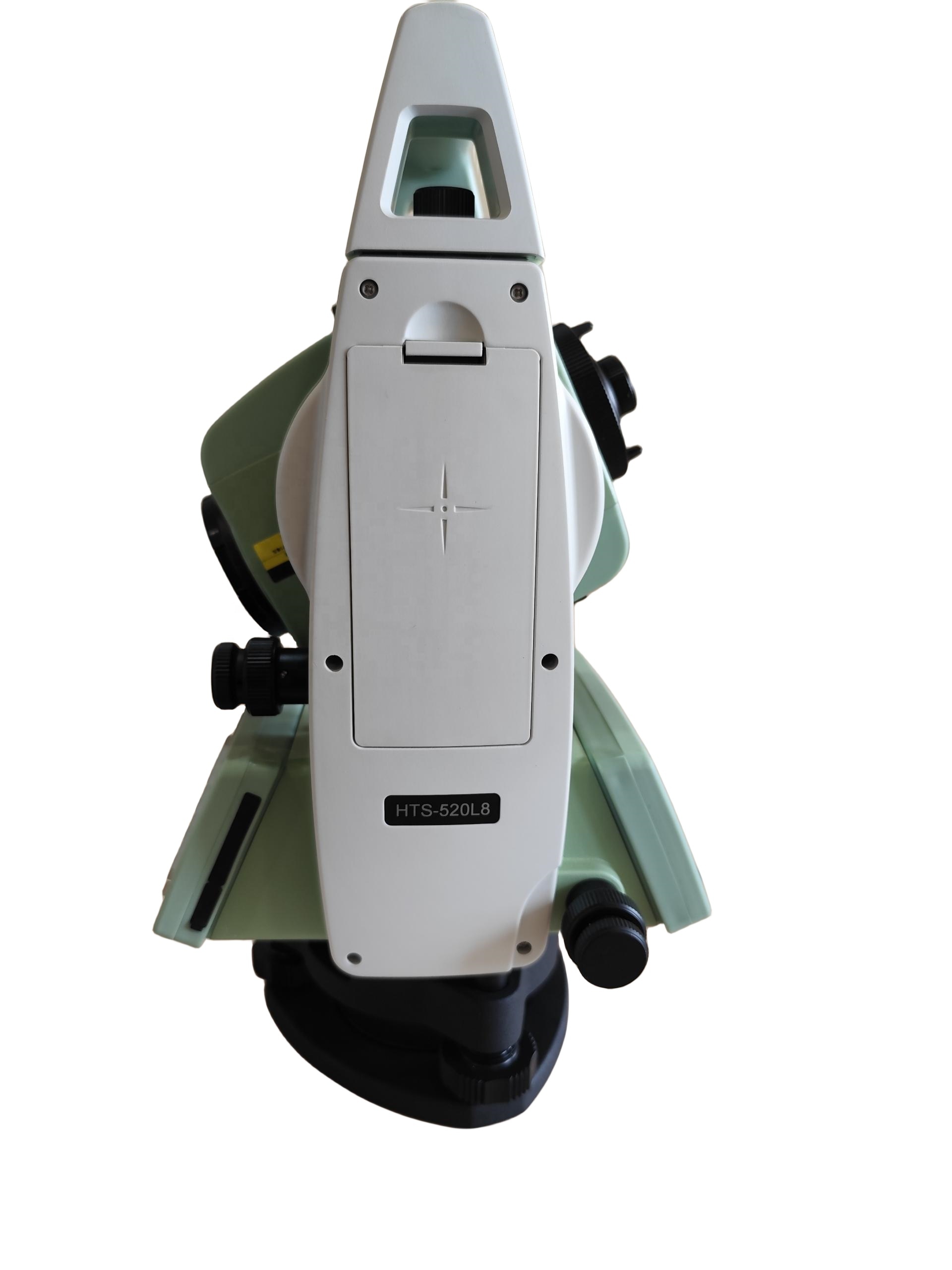

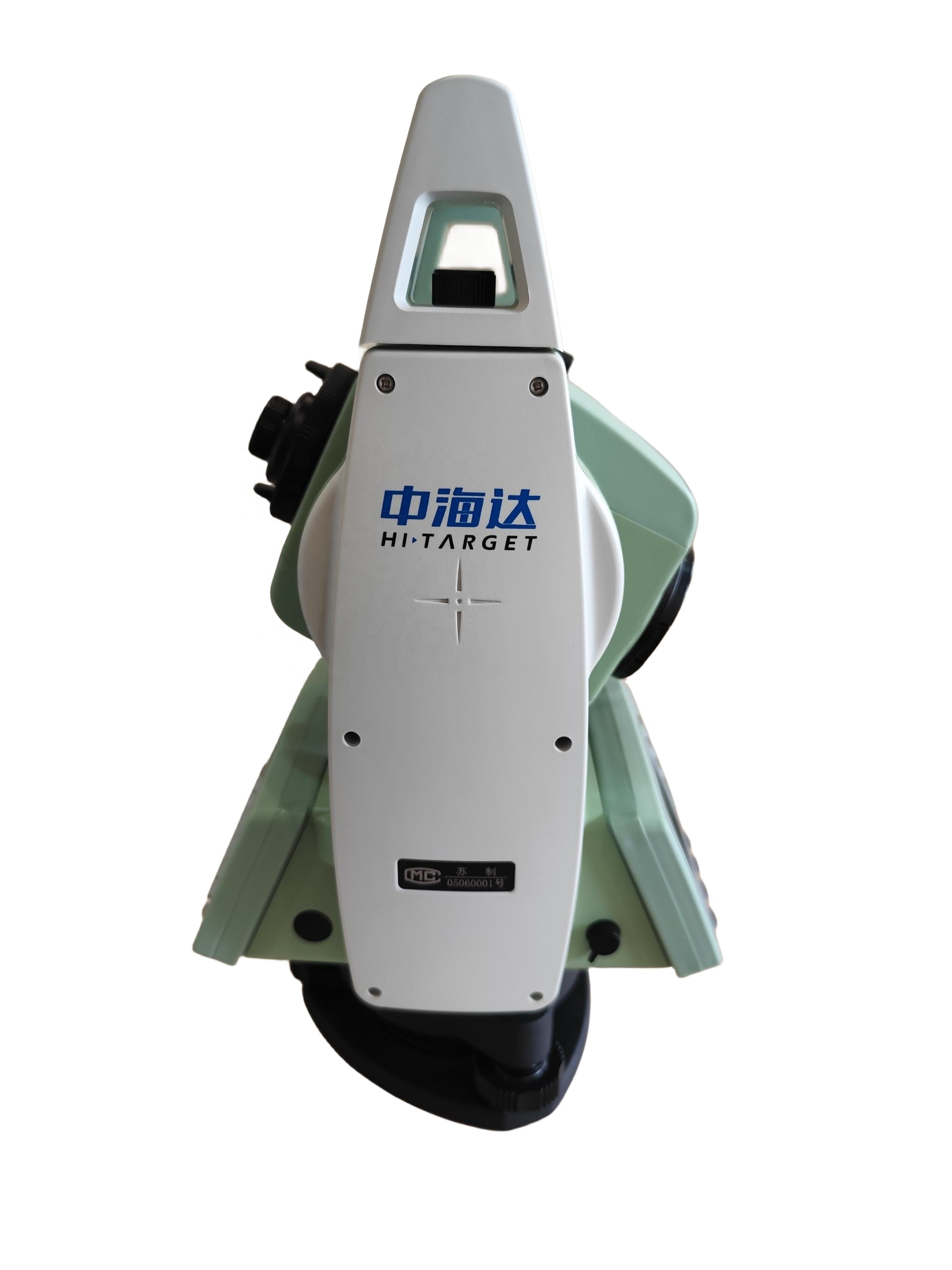

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

Ask Lasest Price
Brand Name :	Hi-Target
Model Number :	HTS-520L8
Price :	＄1050 ,00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

Product Description

Angular accuracy: 2

Prism ranging accuracy: 2+2PPM

Prism range: 4000 metres Prism-free range: 800 metres

Dust and waterproof: IP55 display: 2.8 inch colour screen

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

00:

Specification

Model	HTS-520L8
Angle Measurement
Angle measuring principle	Absolute Encoding
Minimum Readout	1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional
Accuracy¹	2"
Distance Measurement (Prism mode)
Range³	Single Prism: 3000m (9,842ft.) Three Prisms: 6000m (19,685ft.) Reflective Sheet: 800m (2,624 ft.)
Accuracy	3mm＋2ppm
Measuring Time	Repeat/Tracking: 1.5s/1s/0.3s
Distance measurement (Reflectorless)
Range	Range: 400m
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measurement Time	1.5s
Telescope
Magnification	30x
Field of View	1°30' (2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Accuracy *1	1"
Communication
Internal Data Memory	Approx. 20,000 Points
Interface	Standard RS232, SD card4, USB pen drive
Wireless Communication	Bluetoth
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight colourful display
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/ Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours(typical)
Measuring Times	Approx.12000 times
Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Environmental
Operating Temperature	-20℃ ~+50℃( -4℉ to +122℉)
Storage Temperature	-40℃ ~+70℃(-40℉ to + 158℉)
Dust&water proof (IEC60529 Standard)	IP55
