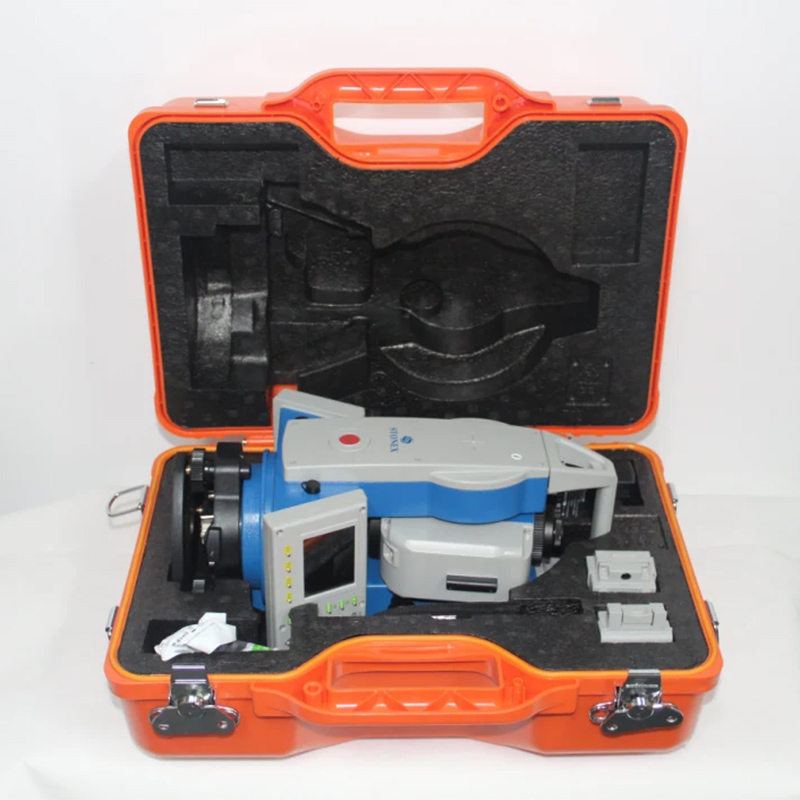

STONEX R2C Automated Robotic Total Station Measuring Instrument

Ask Lasest Price
Brand Name :	Stonex
Model Number :	R2C
Price :	＄1,600.00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

STONEX R2C Automated Robotic Total Station Measuring Instrument

STONEX R2C Automated Robotic Total Station Measuring Instrument

Product Description

Surveying instrument 2'' accuracy total station color screen R2C total station stonex

* Long measuring distance (800 meters without prism)
Using digital phase laser ranging technology, it can achieve high-precision measurement of long-distance targets in prism-free mode, ranging up to 1000 meters; single prism 5000 meters.

* Fast measure speed
Equipped with a new fast digital ranging lens and applying a new ranging technology, it can achieve a single precise measurement of 0.8' and a tracking of 0.3', effectively ensuring the measurement efficiency.

*One-click measurement
When the instrument is measuring, the eye does not need to leave the telescope, and the measurement can be completed with one key. One-key measurement has little impact on measurement operations and can ensure the accuracy of measurement work.

*Dual axis compensation
The fully automatic dual-axis compensator, combined with the visual display of the electronic bubbles, can achieve precise leveling and ensure the accuracy of the horizontal position.

STONEX R2C Automated Robotic Total Station Measuring Instrument

Specification

Model	R2C
Telescope	Mirror tube length	156mm
	imaging	Positive
	Effective diameter of objective lens(EDM)	45mm
	Magnification	30X
	field	1°30′
	Discrimination (JIS)	3.5″
	Shortest range of visibility	1.0m
Range finder	Ranging light source	(visible lase)650~690nm
	Spot diameter	12mm/50mm ellipse
	Laser grade	Class3
	Measuring range(good weather condition)	Non-prism	600m
		Reflector RP60	1000m
		Mini prism	1200m
		Single prism	5000m
	Precision of distance measurement	Prism	±(2+2×10-6·D)mm
		Reflector,Non-prism	±(3+2×10-6·D)mm
	Measurement time	1.0s/0.3s(precision / tracking); initial:2.5s
	Minimum reading of distance measurement	Precision measurement mode:1mm
		Tracking measurement mode:10mm
	Range of temperature setting	-40ºC~+60ºC
	temperature range	1ºC(automatic correction)
	Atmospheric correction	500hPa-1500 hPa
	atmospheric pressure	1hPa(automatic correction)
	Prism constant correction	-99.9mm ~ +99.9mm
Long level bubble	Tube type bubble precision	30″/2mm
	Circular bubble precision	8′/2mm
	Graphical electronic level	30″/2mm;range:3′;Accurancy:1″
Laser counter point device	Light spot size / energy	Adjustable
	Laser class	Class2/IEC60825-1
	wavelength	635nm
	accuracy	±0.8mm/1.5m
Angle measurement	Reading system	Absolute coding system
	Minimum reading	1″/5″
	Precision	2''
	Display unit	360°/400gon/6400mil
Midpoint of optical pair(selection)	accuracy	±0.8mm/1.5m
	Imaging	Positive
	Magnification	3X
	field	4°
Compensator	Compensator method	Dual axis compensation
	Range of compensation	±3′

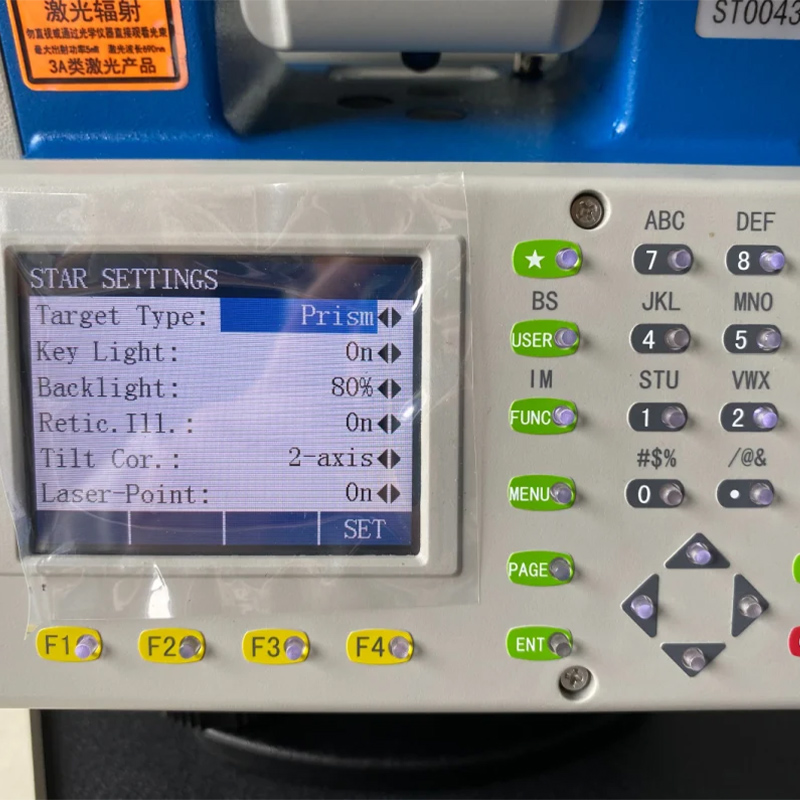

Display	type	LCD display on both sides
		(8 lines and 15 columns of English )
	lighting	LCD backlight
	Screen resolution	240*128
Power Supply	Battery	4000mAh lithium battery
	working voltage	7.4V
	Working time	>24 hours
	Charger	FDJ6-Li
Communication and physical parameters	Memory point	Host RAM with 120000 points
		Hot plugged SD card
	Host weight (with battery)	6KG
	volume	184X220X360MM(WXDXH)
	temperature range	-20ºC~ +50ºC
	I/O upload / download	Having the functions of uploading and downloading
		dataRS232C/USB/SD card(Blue tooth customizable)
	Waterproof grade	IP54(IEC60529)

Note: good weather conditions (no fog, visibility 30Km);
