    Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km

    Ask Lasest Price
    Brand Name : STONEX
    Model Number : S990A
    Price : $3,750.00
    Payment Terms : L/C, T/T
    Supply Ability : 1 ~ 30 day
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km

    Stonex S990A GNSS RTK Receiver High Performance 800 Channels Internal Radio 8km Distance High Performance

    Product Description

    RECEIVER
    Signal Tracking
    GPS: L1 C/A, L1C, L2P. L2C, L5GLONASS: L1, L2, L3¹
    BEIDOU: B1I.B2I,B3I, B1C, B2a. B2b
    GALILEO: E1, E5a, E5b, E6
    QZSS: L1, L2. L5
    IRNSS: L5¹
    SBAS
    PPP
    B2b PPP¹, HAS¹
    Channels
    800
    Position Rate
    Up to 20Hz
    Signal Reacquisition
    ＜1s
    RTK Signal Initialization²
    Typically < 10 s
    Hot Start
    Typically < 15 s
    Initialization Reliability
    >99.9%
    Internal Memory
    32GB
    Os
    Os
    Display
    1.45"TFT LCD, 240 x 320 pixels
    Tilt Sensor
    IMU and E-bubble
    STATICSURVEYING
    High Precision Static Horizontal
    2.5 mm+0.1 ppm RMS
    High Precision Static Vertical
    3.5 mm+0.4 ppm RMS
    Static and Fast Static Horizontal
    3 mm+0.5 ppm RMS
    Static and Fast Static Vertical
    5 mm+0.5 ppm RMS
    CODE DIFFERENTIAL POSITIONING
    Horizontal
    0.25 m+1 ppm RMS
    Vertical
    0.50m+1 ppm RMS
    SBAS POSITIONING
    Accuracy
    0.60 m RMS
    REAL TIME KINEMATIC (< 30 Km)- NETWORK RTK⁵
    Fixed RTK Horizontal
    5 mm+0.5 ppm RMS
    Fixed RTK Vertical
    10 mm+0.5 ppm RMS
    INTEGRATED GNSS ANTENNA
    High accuracy multi-constellation antenna, zero phase center, with internal multipath suppression
    INTERNAL RADIO (optional)⁶
    Type
    Tx-Rx
    Frequency Range
    410-470MHz
    902.4-928MHz
    Channel Spacing
    12.5 KHz/25KHz
    Range
    3-4 Km in urban environment Up to 10 Km with optimal conditions²
    INTERNAL MODEM
    Band
    LTE FDD:
    B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
    LTE TDD: B38/B39/B40/B41
    UMTS: B1/B2/B4/B5/B6/B8/B19
    GSM:B2/B3/B5/B8 Nano SIM card
    COMMUNICATION
    I/O Connectors
    5-pin Lemo connects the external power supply and external radio Type-C, for receiver power supply and data transfer 1PPS port
    Bluetooth
    2.1+EDR, V5.0
    Wi-Fi
    802.11 b/g/n
    Web Ul
    To upgrade the software, manage the status and settings, data download, etc. via Smartphone, tablet or other
    electronic device with Wi-Fi capability
    Reference Outputs
    RTCM2.3, RTCM3.0,RTCM3.2 MSM, CMR, CMR+, DGPS
    Navigation Outputs
    NMEA0183
    POWER SUPPLY
    Battery
    Internal rechargeable 7.2V-10200 mAh
    Voltage
    9 to 28 V DC external power input with over-voltage protection(5-pin Lemo)
    Working Time
    Up to 12 hours
    Charge Time
    Typically 4 hours
    PHYSICAL SPECIFICATION
    Dimensions
    Ø151 mm x 94.5 mm
    Weight
    1.3Kg
    Operating Temperature
    -40C to 65C(-40F to 149F)
    Storage Temperature
    -40C to 80C(-40F to 176F)
    Waterproof/Dustproof
    IP68
    Shock Resistance
    Designed to endure to a 2 m pole drop on hardwood floor with no damage
    Vibration
    Vibration resistant

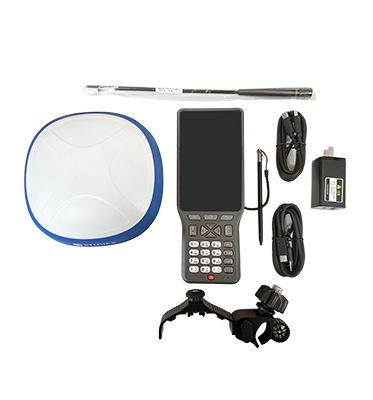

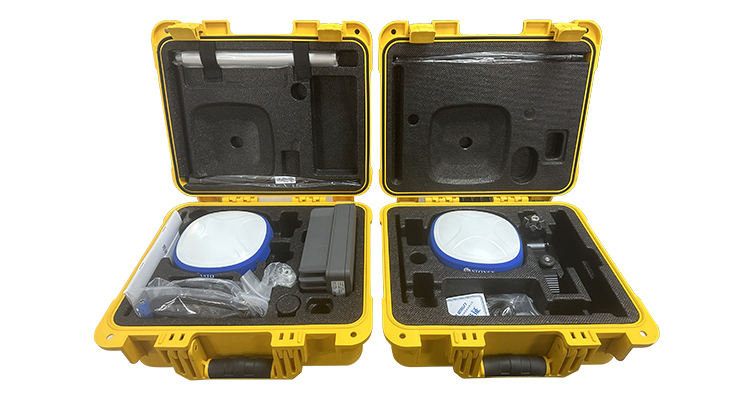

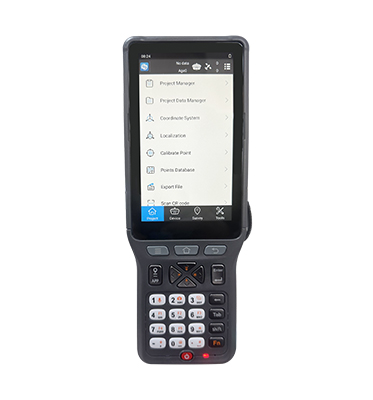

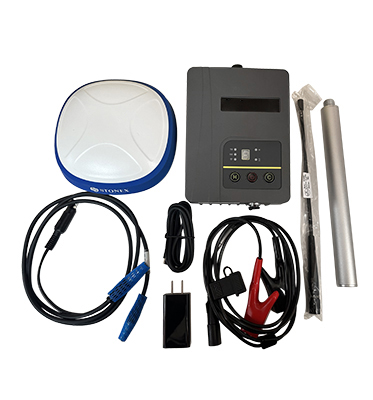

    REAL PRODUCT PHOTO
