    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Ask Lasest Price
    Brand Name : UFO
    Model Number : U3 PRO
    Price : $2,900.00
    Payment Terms : L/C, T/T
    Supply Ability : 1 ~ 30 day
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

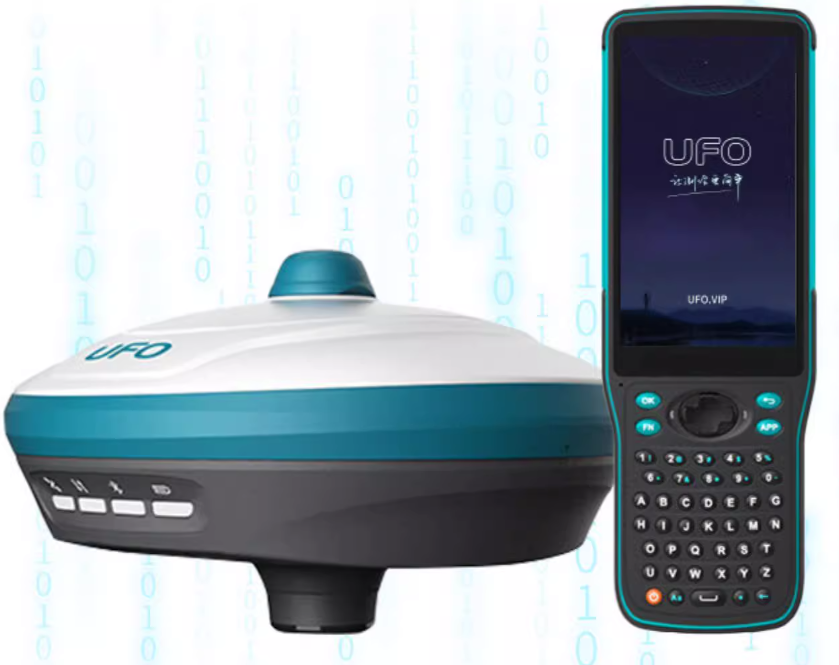

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Product Detail

    Sensorless Inertial Guidance Tilt Measurement
    No initialisation of inertial guidance, fast calibration and high dynamic output of tilt measurement results, no waiting for measurement release

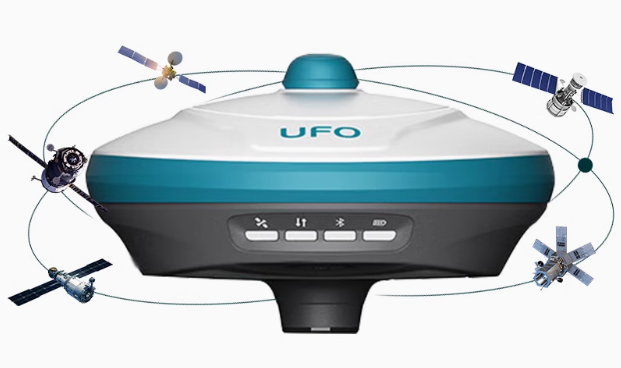

    1408 channels, higher sensitivity, no need to worry about blocking the environment is not fixed.
    Support single BeiDou satellite service, support 5 stars and 31 frequencies, using dual-core processor, chip computing power greatly improved, more satellite frequency points can also be solved.
    1408 channels, the fixed effect in the sheltered environment to enhance the 15% multi-algorithm mutual calibration, eliminating the flying point, measured all can be used

    Dual data backup, giving you more peace of mind
    RTK data storage using host + RTK handbook dual backup mode when the handbook deleted by mistake or other unexpected circumstances can choose to export the backup data from the host for quick recovery, data security is guaranteed.

    Extremely fast charging, rechargeable power supply
    PD protocol fast charging, while supporting the charging treasure power supply at any time and place full of energy, fearless high intensity operation needs.

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Technical Parameters




    GNSS Performance
    Channels
    1408
    GPS
    GPS:L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
    GLONASS
    G1P1,G2P2,G1OC,G2OC,G3OC
    Galileo
    E1BC,E5a,E5b,E5ALTBOC,E6BC
    BeiDou
    B1, B2, B3
    SBAS
    L1
    QZSS
    L1CA,L2C,L5,L1C,LEX
    L-Band


    GNSS Accuracies

    Real time
    kinematics (RTK)
    Horizontal: 8 mm + 1 ppm RMS
    Vertical: 15 mm + 1 ppm RMS
    Initialization time: < 10 s
    Initialization reliability: > 99.9%
    Positioning rate
    5 Hz






    Hardware
    Size (L x W x H)
    φ152mm×92mmH
    Weight
    920g

    Environment
    Operating:-30°C to +65°C
    (-40°F to +149°F)
    Storage: -40°C to +80°C
    (-40°F to +185°F
    Ingress protection
    IP67 waterproof and dustproof, protected
    from temporary mmersion to depth 1m

    Tilt sensor
    Calibration-free IMU for pole -tilt
    compensation.Immune to magnetic
    disturbances.
    Front panel
    4 status indicators and power indicator




    Communication
    Wi-Fi
    802.11 b/g/n, access point mode
    Blue Tooth
    V2.1+EDR/V4.1 dual mode, Class2
    Others
    NFC


    UHFradio
    Transmitting power: 1w, frequency: 410-470MHz
    Radio protocol: SATEL, PCC-EOT, TrimTalk450S, South9600, South19200, Hi-Target9600, Hi-Target19200, TrimMarkIII (19200),
    TrimMarkI, GEOTALK, GEOMARK
    Data storage
    8 GBinternal memory



    Electrical
    Input voltage
    DC 9V-28V
    Li-ion battery capacity
    Built-in non-removable battery
    6800 mAh, 7.2V
    Operating time on
    internal battery
    RTK:Rover 16h









    Hand thinness parameters
    model
    C5
    network
    4G All Netcom (Mobile Unicom Telecom 2G/3G/4G)
    operating system
    Google Android 9.0
    CPU
    64-bit, 8-core 2.0GHz
    LCD panel
    5.5-inch AMOLED self-illuminating display
    Data line interface
    USB-TypeC
    battery
    3.8V 5200mAh
    Three Preventions
    IP67
    Stylus
    yes
    Size (L x W x H)
    225x78x18.5mm

    Certifications

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    Company Profile

    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof

    FAQ

    1. who are we?
    We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
    Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
    Europe(4.00%). There are total about 11-20 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

    4. why should you buy from us not from other suppliers?
    1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
    sending out and all products have one year warranty.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

    Our Service
    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof
    Packing & Delivery
    Calibration Free GPS UFO U3 PRO GNSS RTK Receiver Land Surveying IP68 Waterproof
