CHENGDU JIEBO TECHNOLOGY CO.,LTD Main categories: GPS measuring instrument,total station,Level,Theodolite,Measuring accessories
2 Years
| Ask Lasest Price | |
| Brand Name : | SOUTH |
| Model Number : | NTS-362R10 |
| Price : | $1,500.00 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1 ~ 30 day |
| Delivery Time : | 30 work day |

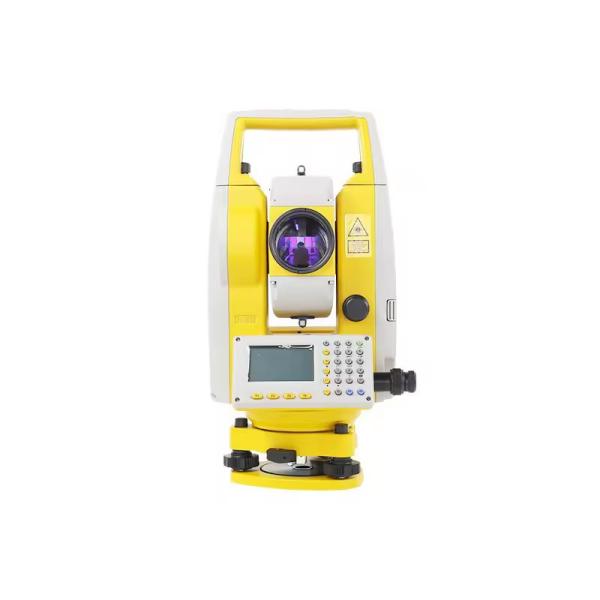

Non Reflective Mirror Accuracy 2" Measurement range 1000m SOUTH NTS-362R10 Good quality Total Station
Overview
| Model | NTS-362R10 |
| Distance Measurement (with cooperation target) | |
| Range Measurement | Single Prism:5000m |
| Reflective Sheet (60mm*60mm):1000m | |
| Accuracy | +(2mm+2X10-6·D) |
| Measure Time | Precision measurement 0.3 seconds/tracking 0.1 seconds |
| Mirror-free Distance Measurement (no cooperating target) | |
| Range (Kodak White, 90% reflectivity) | 1000m |
| Accuracy | +(3+2X106·D)mm |
| Measure Time | 0.3~3 seconds |
| Angle Measurement | |
| Angle Measurement Method | Absolute coded angle measurement technology |
| Code Disc Diameter | 79mm |
| Minimum Reading | 0.1"/1"/5"/10"optional |
| Accuracy | 2" |
| Detection Method | Horizontal plate: Diameter Vertical plate: Diameter |
| Telescope | |
| lmaging | Normal image |
| Lens Barrel Length | 154mm |
| Effective Aperture of Objective Lens | Effective aperture: 48mm |
| Magnification | 30X |
| Angle of View | 1°30 |
| Resolution Ratio | 3" |
| Minimum Focus Distance | 1.2m |
| System Comprehensive Parameters | |
| Compensator | Biaxial Liquid Photoelectric Electronic Compensator |
| Weather Correction | Automatic correction of input temperature and air pressure |
| Prism Constant Correction | Input parameter automatic correction |
| Leveling Device | |
| Tube Level | 30"/2mm |
| Weather Correction | 8'/2mm |
| Laser Plummet (optical plummet optional) | |
| Brightness Level | 5 levels of adjustment |
| Accuracy | +1.5mm |
| Display Part | |
| Screen Type | HD LCD screen |
| Keyboard Type | letter + number keys |
| Digital Display | Maximum 999999999.9999 Minimum 0.1mm |
| Data Transmission | |
| Data Interaction Interface | RS-232.USB.SD card.Bluetooth |
| Onboard Battery | |
| Power Supply | Rechargeable lithium battery/3100mAH |
| Voltage | DC 7.4V |
| Continuous Working Time | 8 hours |
| Dimensions and Weight | |
| Size | 200mm*190mm*330mm |
| Weight | 5.5kg |
| Good weather: cloudy, breeze, no foq, visibility about 40krn, D is the measured distance, the unit is in milimeters. | |
Packing & Delivery
Certifications
FAQ
1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder
4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
|
|
