    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER

    Ask Lasest Price
    Brand Name : FOIF
    Model Number : A90
    Price : $3,000.00
    Payment Terms : L/C, T/T
    Supply Ability : 1 ~ 30 day
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER

    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER

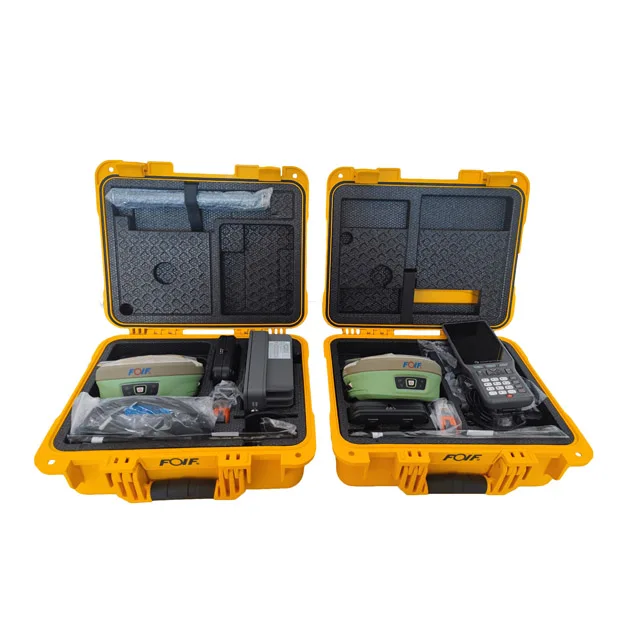

    Detailed Images
    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER
    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER
    Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER
    Product Description
    1. Compact design, more productive
    2. Professional GNSS satellites tracked simultaneously( GPS, Glonass, Galileo, Beidou)
    3. Automatic data collection during centering
    4. When the pole is tilted in 60 degrees, A90 still could get the right point data by automatic correct system.
    5. Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status
    6. Bundled Android field software brings a big change in user experience and accessibility
    Specification
    Items
    Specification
    GNSS
    GNSS board
    UM980
    Channel
    1408
    Satellites
    GPS: L1C/A, L2P(Y), L2C, L5
    GLONASS: L1/L2
    BeiDou: B1I, B2I, B3I,B1C,B2a, B2b,
    GALILEO: E1, E5A, E5B, E6
    IRNSS: L5 SBAS: L1C/A, L5
    QZSS: L1,L2,L5,L6
    Update rate
    5Hz( Standard to 5 Hz, can pay to activate 50 Hz)
    Static Accuracy
    Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm
    RTK Accuracy
    Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm
    IMU function
    Tilt survey 60 degree
    Power
    Battery
    Dual batteries, 7.2V/3400mAh*2 Can work at least 10 hours
    Input
    9-28V DC
    System
    OS
    Linux
    Memory
    Internal 8G; TF extended, Max≥32G
    Bluetooth
    V2.1+EDR/ V4.1 Dual Mode, Class 2
    WI-FI
    802.11 b/g/n
    4G
    North America: EC25-A, 4G
    FDD LTE: B2/B4/B12
    WCDMA: B2/B4/B5
    Internal UHF
    TRM 101; Power 1W, Frequency 410-470 MHz
    Work Distance: 5km in good environment
    Protocol
    SATEL, PCC-GMSK, Trim Talk 450S, South, TrimMark IIII(19200), GeoTalk, GeoMark
    Electric Bubble
    Support, Support tilt survey
    Interface
    TNC
    For UHF Antenna
    5 pin
    External radio and external power
    7 pin
    USB Port, NMEA Out put
    Others
    Micro SIM Slot and TF slot
    Operation
    Button
    Power button, also can show Power status
    Indicator
    5 indicators: Satellites, Datalink, Bluetooth, WIFI Status, Power Indicatior
    Language
    Supports TTS Multi language voice
    Physical
    D*H
    157mm*76mm
    Weight
    1.2KGS with 2 batteries inside
    Environment
    Work Temperature
    Stock Temperature
    -40℃~+80℃
    Protection
    IP67
    Shock
    Withstand 2 meters pole drop, 1.2m drop without pole
    Humidity
    100%

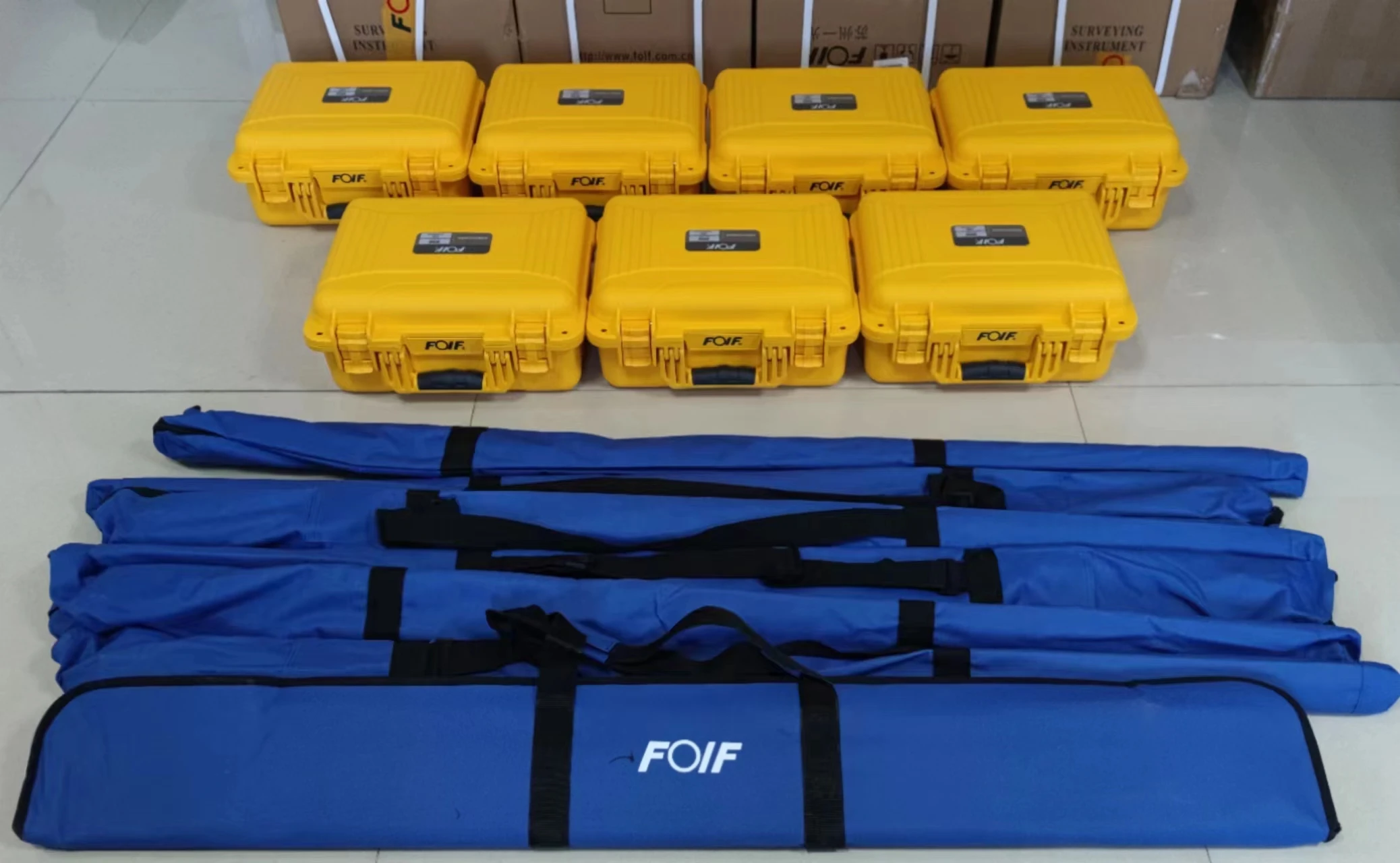

    Parking and Delivery
