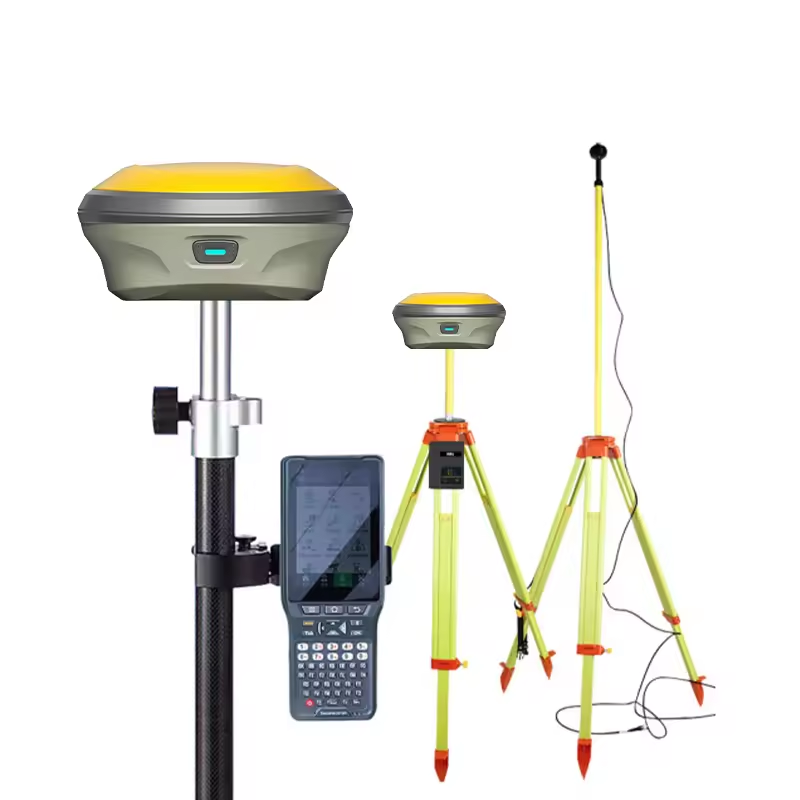

High-Precision GNSS Rtk Receiver Unistrong G960 RTK GPS Beidou Positioning Base Station Engineering Surveying

Overview

Product Description

1. Receiver Type

   • Multi-frequency, multi-GNSS receiver, supporting GPS, BeiDou, GLONASS, etc.

2. Positioning Accuracy

   • Single-point Positioning: Horizontal ≤2.5m, Vertical ≤3.5m
   • SBAS Positioning: Horizontal ≤1.5m, Vertical ≤2.5m
   • RTK Positioning: Horizontal ≤1cm + 1ppm, Vertical ≤2cm + 1ppm

3. Measurement Rate

   • Real-time Output: 1Hz ~ 20Hz selectable
   • Post-processing: 1Hz ~ 100Hz selectable

4. Communication Interfaces

   • Serial Port: 1 x RS232
   • Network: 1 x 10/100 Base-T Ethernet
   • Bluetooth: Supports Bluetooth 4.0
   • WiFi: Supports 802.11b/g/n

5. Power System

   • Built-in Lithium Battery: 8 hours of operation
   • External Power: 9 ~ 28V DC

6. Physical Characteristics

   • Dimensions: 200mm x 120mm x 65mm
   • Weight: 1.2kg (including battery)
   • Operating Temperature: -40°C ~ +60°C

7. Others

   • IP Rating: IP67
   • Supports Firmware Online Upgrade

the key application scenarios for the unistrong G960 GNSS receiver

1. Surveying and Geospatial Information Systems (GIS)

   • Used for high-precision positioning in cadastral surveys, photogrammetry, engineering surveys, etc.
   • Integrated with GIS software for map-making, resource investigation, facility management, and more.

2. Engineering Construction

   • Applied in the positioning and stakeout for infrastructure construction like roads, railways, and hydraulic engineering.
   • Can be used for the survey of buildings, bridges, and other engineering projects, providing centimeter-level accuracy.

3. Precision Agriculture

   • Used for the auto-steering navigation of tractors, harvesters, and other agricultural machinery.
   • Enables precise planting, spraying, and harvesting operations in the field.

4. Mining Surveying

   • Applied in the topographic mapping, blast control, and stockpile monitoring of open-pit mines.
   • Provides high-precision location data to support geological exploration and mining operations.

5. Geohazard Monitoring

   • Used for displacement monitoring of active faults, landslides, and other geologic hazard areas.
   • Real-time data collection to support decision-making for disaster prevention and mitigation.

6. Scientific Research

   • Widely used in atmospheric physics, marine surveying, astronomical observation, and other scientific fields.
   • Provides high-accuracy time synchronization and positioning data to meet the needs of scientific research.
