CHENGDU JIEBO TECHNOLOGY CO.,LTD Main categories: GPS measuring instrument,total station,Level,Theodolite,Measuring accessories
2 Years
| Ask Lasest Price | |
| Brand Name : | STONEX |
| Model Number : | S700A/S3II |
| Price : | $3,100.00 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1 ~ 30 day |
| Delivery Time : | 30 work day |

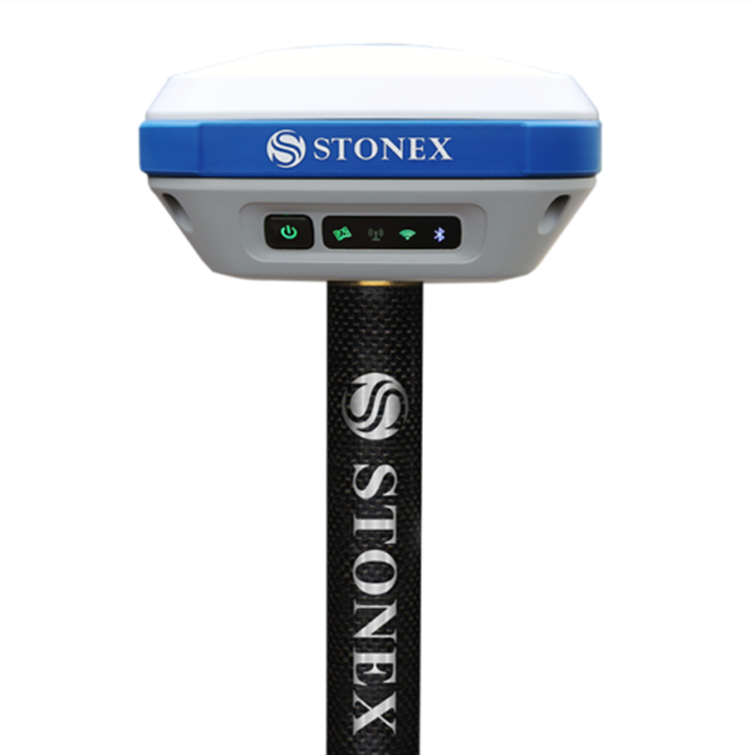

International Version STONEX S700A/S3II Gps Surveying Instruments GNSS Rover And Base Station RTK
| Model | S3ll |
| Satellite system | |
| Satellite system | BeiDou/GPS/GLONASS/Galileo,ATLAS |
| Tracking | |
| channel | 800channels |
| GPS | L1 ,L2, L5 |
| GLONASS | G1 C/P, G2C, G2P, G3 |
| BDS | B1, B2, B3 |
| Galileo | E1, E5a, E5b |
| Aided positioning | IRNSS L5 |
| SBAS L1, L5 | |
| QZSS L1 C/A, L1C, L2C, L5, L6 | |
| L-BAND | TerraStar(optional) |
| RTK ASSIST(optional) | |
| Performace Index | |
| Static H Accuracy | ±(2.5mm+1ppm)RMS |
| Static V Accuracy | ±(5mm+1ppm)RMS |
| RTK measure H Accuracy | ±(8mm+1ppm)RMS |
| RTK measure V Accuracy | ±(15mm+1ppm)RMS |
| ATLASposition* | H:5cm |
| V:10cm | |
| Initialization time | <10s |
| Initialization reliability | >99.99% |
| Data Output Rate | 1Hz-20Hz |
| Static Storage and Data Output | |
| Storage format | Dat/Rinex |
| Storage memory | Standard 16G |
| Storage way | Two formats of data can be stored at the same time |
| Download way | Suooprt USBdownloada &Web download |
| Export format | NMEA0183,PJKPlanar coordinates, binary codes |
| Export way | blue tooth/WIFI/RS 232/radio/network |
| blue tooth | 2.1/4.1 LE dual Modular |
| WiFi | 802.11 b/g/n |
| voice | Support voice broadcasting |
| Communication protocol | TrimTalk / TrimMask 3;PCC EOT;Geotalk;Hi-target |
| Radio | Built-in transceiver:0.5W/1W(can adjust) |
| external launch:5W/35W(can adjust) | |
| working frequency:410-470MHz | |
| I/O port | 1 LEMO data port,USB data download,U disk upgrade function |
| 1 LEMO port,External Output Input,External power supply | |
| 1 LEMO power port;1 TNC radio port | |
| Difference scheme | RTCM2.X,RTCM3.X,CMR,CMR+,ROX |
| GNSS Antenna characteristics | |
| GNSSAntenna characteristics | Integrated built-in antenna with zero phase center difference |
| environment | |
| working temperature | -30ºC~+70ºC |
| Storage temperature | -40ºC~+80ºC |
| Waterproof and dust-proof | IP67 |
| Fall prevention | Resistance to 2 m drop with pole (hard ground with concrete) |
| Water proof | Immersion 1 m underwater (30 minutes) |
| humidity | 100% condensation resistance |
| Physical and power characteristics | |
| Using time | >10 hours |
| size | 146mm×146mm× 76mm |
| weight | 1.2kg |
| battery | 7.2V 6800mAh |
| key | 1 key |
