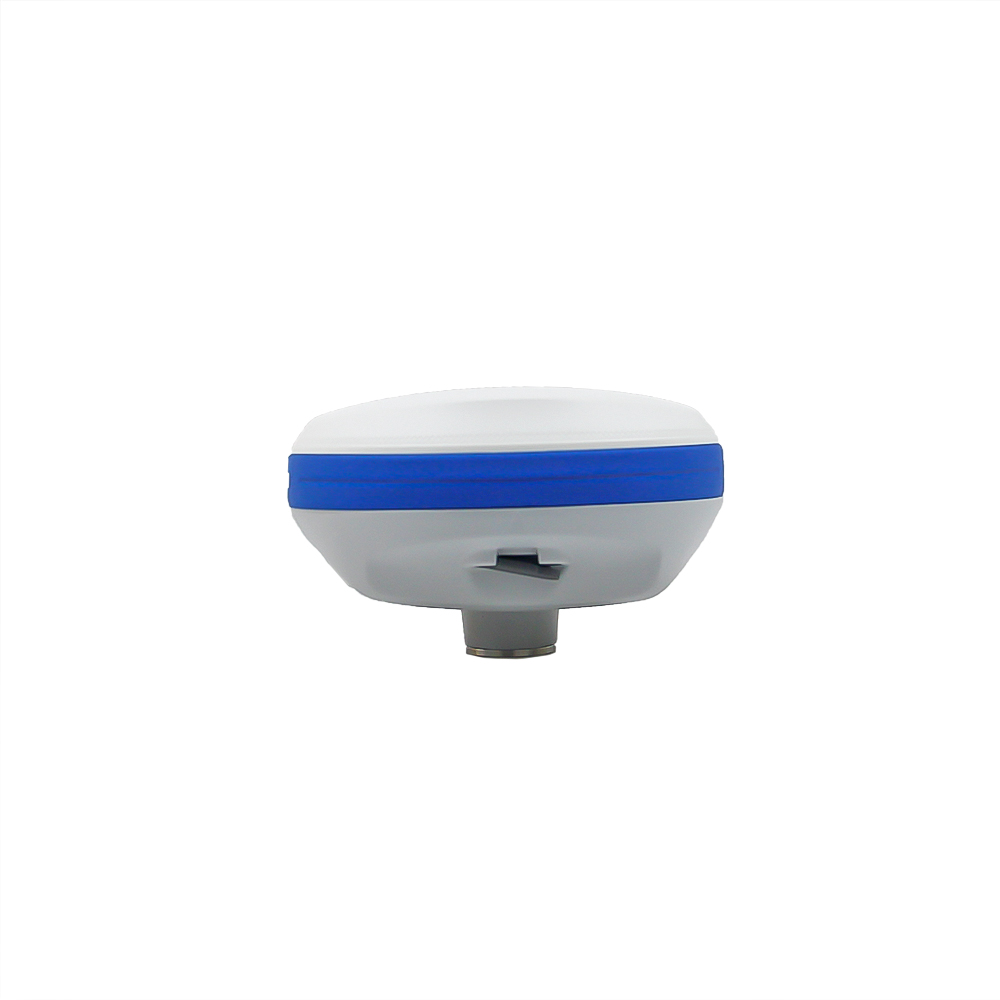

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

Overview

System Configuration		Environmental Performance
Operating system	Linux	Operating temperature	-30℃ ~ +65℃
Built-in storage	8GB, supports MicroSD storage expansion	Storage Temperature	-40℃ ~ +80℃
Bluetooth	V2.1 + EDR/V4.0 dual-mode, CIass2	Waterproof and dustproof	IP67
WIFI	802.11b/g/n	UHF radio station	TX and RX(1w),3-5 km typically2
Voice	TTS voice broadcast	Operating frequency:	410-470mhz
Electron bubble	Support
Satellite Characteristics
Satellite Channel	1408	GLONASS	G1P1,G2P2,G1OC,G2OC,G3OC
BDS-2	B1i,B2i,B3i	Galileo	E1BC,E5a,E5b,E5ALTBOC,E6BC
BDS-3	B1C,B2a,B2b,ACEBOC	QZSS	L1CA,L2C,L5,L1C,LEX
GPS	L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5	L-Band	Support
SBAS	SBAS WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS
Inertial navigation IMU
Tilt measurement	Supported	Tilt accuracy	60 °/2cm (horizontal)
Power supply characteristics		Physical indicators
Battery capacity	7.2V ,10000mAh	Weight	550g
External Power Supply	9-28VDC with overvoltage protection	Size	120mm*H72.5mm

ower Supply

9-28VDC with overvoltage protection

Size

120mm*H72.5mm

Product Dispay

Chengdu JieBo Technology Co., Ltd. was established in 2016 and is a high-tech enterprise specializing in the import and export trade of surveying and measurement instruments. The company's headquarters is located in Chengdu, with branch offices in major cities across China, providing customers with high-quality products and services.

Main Business

Chengdu JieBo Technology mainly engages in the import and export trade of the following surveying and measurement instruments:

• GPS/GNSS positioning systems
• Total stations
• Digital levels
• Laser scanners
• Photogrammetry equipment
• Unmanned aerial remote sensing equipment

We have established stable cooperative relationships with multiple well-known domestic and international brands, providing customers with one-stop solutions from selection, procurement to after-sales.

Professional Advantages

• Rich industry application experience
• Professional technical support team
• Comprehensive after-sales service system
• Flexible procurement and payment methods
• Advanced warehouse and logistics management

Customers and Markets

Chengdu JieBo Technology's customers cover a wide range of fields, including surveying, engineering, mining, and environmental protection. With high-quality products and professional services, we have gained a good reputation in the domestic and international markets.

Development Vision

In the future,Chengdu JieBo Technology will continue to focus on customer needs and continuously optimize our product line and service system. We will further expand our market share both domestically and internationally, contributing more to the development of the industry.
