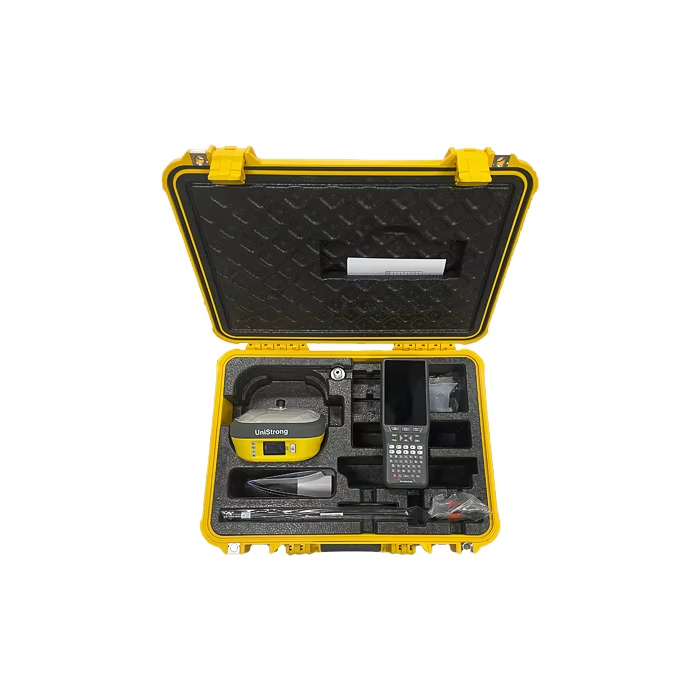

    Surveying Instrument Unistrong G990II GNSS Receiver e-survey E800 RTK Measuring Equipment RTK Rover and Base

    Ask Lasest Price
    Brand Name : Unistrong
    Model Number : G990II
    Price : $4,500.00
    Payment Terms : L/C, T/T
    Supply Ability : 1 ~ 30 day
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    Surveying Instrument Unistrong G990II GNSS Receiver e-survey E800 RTK Measuring Equipment RTK Rover and Base

    Surveying Instrument Unistrong G990II GNSS Receiver e-survey E800 RTK Measuring Equipment RTK Rover and Base


    Overview

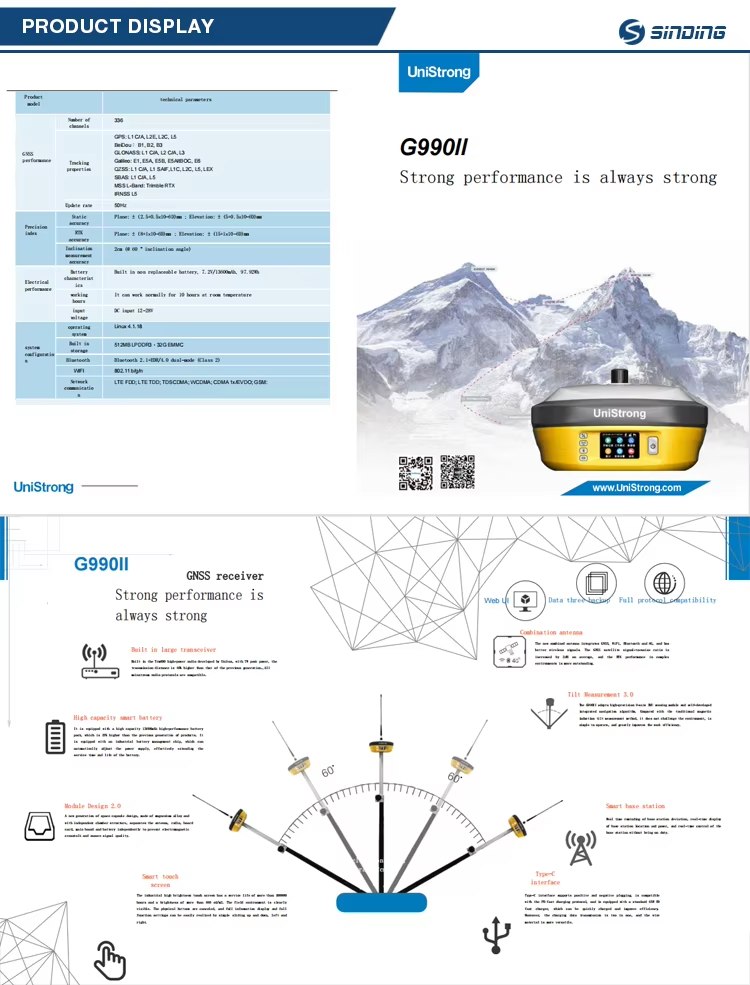

    Specification G990II GNSS Receiver
    Product model
    G990II specification
    GNSS
    Channels
    800 Channels
    Satellite Signals
    GPS: L1 C/A, L2E, L2C, L5 BDS: B1, B2, B3
    GLONASS: L1 C/A, L2 C/A, L3 Galileo: E1, E5A, E5B, E5AltBOC, E6
    QZSS: L1 C/A, L1 SAIF,L1C, L2C, L5, LEX SBAS: L1 C/A, L5
    MSS L-Band: Trimble RTX
    IRNSS L5
    GPS: L1C/A,L1C,L1P,L2C,L2P,L5; GLONASS:G1P1,G1OC,G2OC,G2P2,G3OC
    BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC; Galileo: E1BC, E5a, E5b, ALTBOC, E6
    QZSS: L1C/A, L1C, L2C, L5, LEX; SBAS: L1, L5;
    IRNSS: L5;
    L-Band
    Update Rate
    50Hz
    Accuracy
    Static
    H: (2.5+0.5×10-6D)mm ; V: (5+0.5×10-6D)mm
    RTK
    H: (8+1×10-6D)mm; V: (15+1×10-6D)mm
    IMU Tilt Survey
    2cm (@60°Tilt degree)
    IMU update rate
    400 Hz
    Electric Bubble
    Enable
    Power supply
    Battery capacity
    Built-in non-replaceable battery, 7.2V/13600mAh, 97.92Wh
    Life Timer
    12 hours at room temperature
    External power
    source
    DC 9-28V
    System
    OS
    Linux 4.1.18
    Memory
    512MB LPDDR3,32G EMMC
    2.1+EDR /4.0 Dual, (Class 2)
    WIFI
    802.11 b/g/n
    Network
    LTE FDD: B1/B3/B8/LTE TDD: B38/B39/B40/B41/TDSCDMA: B34/B39 WCDMA: B1/B8/CDMA 1x/EVDO: BC0/GSM: 900/1800
    WebUI
    To manage the status and settings, upgrade firmware, data download
    Datalink
    UHF Radio
    TRM600, TX&RX, Frequency: 410-470MHz, 7w radio, work range 12KM
    Protocol
    SATEL/ TrimTalk/TRIMMARK3/PCC-GMSK/GEOTALK/TT450S/ HiTarget and etc.
    Output format
    RTCM2.1, 2.3, 3.0, 3.2, 3.3, CMR, CMR+, RTCA
    Type-C Port
    Direct charging, data transmission. Support PD first charge
    5Pin Port
    Used to connect external power and external radio
    SIM Card slot
    Install Nano SIM Card, Side, Flip
    Physical
    Size
    154mm Length×154mm Width×76mm Height
    Screen
    360 x 250 capacitive touch screen, multi-touch
    Environment
    Work Temperature
    -45℃ ~ +75℃
    Storage
    Temperature
    -55℃ ~ +85℃
    Down Fall
    Resistance to 2m fall with pole (hardwood ground), 1.2m free fall.
    Waterproof
    & dustproof
    IP68
    Humidity
    anti-condensation 100%


    Packing & Delivery



    Certifications



    FAQ


    1. who are we?
    We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
    Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
    Europe(4.00%). There are total about 11-20 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

    4. why should you buy from us not from other suppliers?
    1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
    sending out and all products have one year warranty.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
