| Brand Name : | SOUTH |
| Model Number : | SDE-28S+ |
| Price : | $4200,00 |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1 ~ 30 day |
| Delivery Time : | 30 work day |

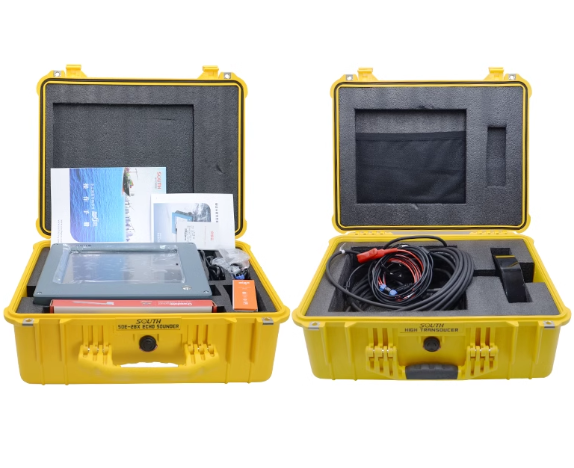

Ultrasonic Underwater Measurement Depth Echo Sounder South SDE-28S+ For Underwater Mapping
Specification
| Item | Content |
|---|---|
| Language | Chinese, English |
| Operating Frequency | 200KHZ |
| Beam Angle | 5° |
| Depth Range | 0.3M ~ 600M |
| Output Power | Maximum 300W |
| Measurement Frequency | Adjustable, up to 14HZ (supports 30HZ) |
| Resolution | 1CM |
| Measurement Range | 8M, 15M, 30M, 60M, 120M, 240M, 300M (supports interchange) |
| SPECIFICATIONS | |
| Measurements | |
| Frequency | 200 kHz |
| Beam Angle | 5° |
| Depth Resolution | 0.1ft/0.01m |
| Accuracy | 0.01m±0.1%D (0.1% of depth value) |
| Ping Rate | 14Hz, Maximum 30Hz |
| Sound Velocity | 1300-1700m/s, resolution is 1m/s |
| Depth Range | 0.3-300m/900ft |
| Draft | 0-9.9m |
| Gain Control | AGC and TVG, depth and gain, a double door tracking |
| Output data format | SDH-13D, DES025, INN455, ODOM etc |
| Physical | |
| Environmental | -30°~+60° non-condensing |
| Output Power | Up to 300W |
| Power Supply | 9-15V DC, less than 25w, 110~265V AC (optional), |
| Dimension | 35cm¡29cm¡14cm |
| Weight | 7.5kg |
| Hardware part | |
| Embedded system index | CPU frequency 1.6GHz Internal memory 1G Memory capacity 4G high-speed CF card (supports extended storage) |
| I/O interface | 2 USB 2 RS232 1 VGA interface |
| Display Panel Layout | Touch screen Embedded windows XP OS Power ON/OFF Interface protection Separate Panel Overlay for Keyboard Mouse |
| Remarks | Measurement accuracy and operation range might vary due to atmospheric conditions, signal multipath, obstructions, observation time, temperature, signal geometry and number of tracked satellites. Specifications subject to change without prior notice. |
Shallow water tracking mode
Suitable for high intensity operation on water
All aluminium alloy housing, compact structure, good shock resistance
DSP chip processing technology software automatic control
Software control of pulse width, gain, power and gear.
DSP chip processing technology ensures reliable waveform and water depth value
