    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement

    Ask Lasest Price
    Brand Name : SOUTH
    Model Number : SDE-28S+
    Price : $4200,00
    Payment Terms : T/T, L/C
    Supply Ability : 1 ~ 30 day
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement

    Ultrasonic Underwater Measurement Depth Echo Sounder South SDE-28S+ For Underwater Mapping
    Product Description
    SDE-28S

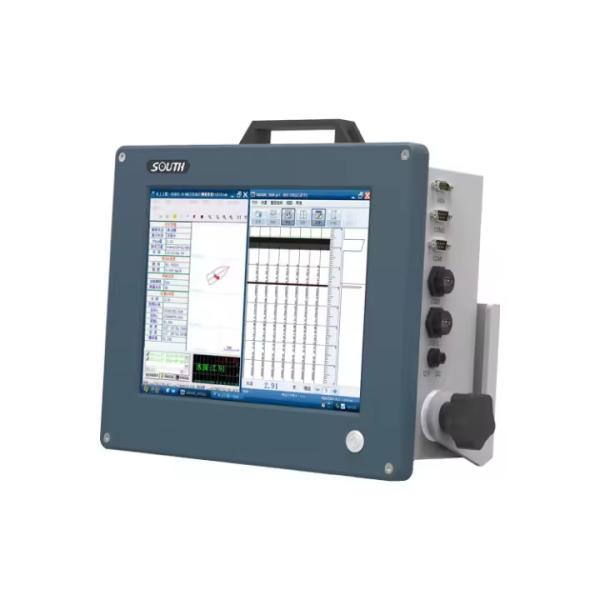

    SOUTH SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterproof, shockproof. It collects depth measurement, graphical navigation, positioning data, water depth data acquisition together. All these features make the instrument strong compatibility, stable performance and reliable accuracy.
    ·Real-time vivid display of graphic and data, easy approach to underwater waves
    ·Integrated sound velocity calculation for more accurate results
    ·Smart alarm for shallow water and "No echo" tracking to secure hydrographic operations
    ·Real-time display of the water depth value tracking lines, easy to be compared with underwater waves
    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement
    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement

    Specifications
    Depth Resolution
    ±1cm±0.1 D (0.1% of depth value)
    Accuracy
    ±1cm±0.1 D (0.1% of depth value)
    Ping Rate
    14Hz, Maximum 30Hz
    Sound Velocity
    1300-1700m/s, resolution is 1m/s
    New software kernel, faster processing and more stable
    ·Professional Engineering map sheet and data management, wizard-style parameter setting
    ·High compatibility, flexible to import graphs and data, connectible to all GPS devices and echo sounders
    ·Modular designed, meets diverse needs of hydrographic engineering projects
    Measurements Frequency 200 kHz
    Beam Angle 7
    Depth Resolution 0.1ft/0.01m
    Accuracy ±1cm±0.1 D (0.1% of depth value)
    Ping Rate 14Hz, Maximum 30Hz
    Sound Velocity 1300-1700m/s, resolution is 1m/s
    Depth Range 0.3-300m/900ft Draft 0-9.9m
    Gain Control AGC and TVG, depth and gain, a double door tracking
    Output data format SOUTH, SDH-13D, DES025, INN455, ODOM etc
    Physical Environmental -30 ~+60 non-condensing
    Output Power Up to 300 watts
    Power Supply 9-15V DC, less than 25w, 110~265V AC (optional),
    Dimension 35cm 29cm 14cm Weight 7.5kg Hardware part
    Embedded system index CPU frequency 1.6GHz Internal memory 2G Memory capacity 8G high-speed CF card (supports extended storage)
    I/O interface 2 USB 2 RS232 1 VGA interface
    Display Panel Layout 12.1-inch color LCD Touch screen
    Embedded windows XP OS Power ON/OFF
    Interface protection Separate Panel Overlay for Keyboard Mouse

    Certifications
    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement
    Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement
