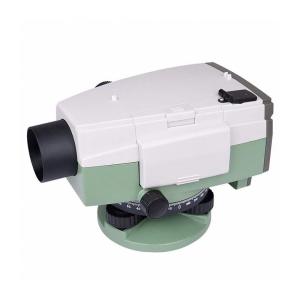

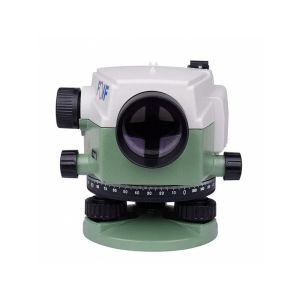

28X Digital Transit Automatic Level Measuring Instrument Foif EL28

Ask Lasest Price
Brand Name :	Stonex EL28 Level
Model Number :	EL28
Price :	＄525.00
Payment Terms :	T/T, L/C
Delivery Time :	30 work day

Add to Cart

Product Details
Company Profile

28X Digital Transit Automatic Level Measuring Instrument Foif EL28

28X Digital Transit Automatic Level Measuring Instrument FOIF EL28

Product Description

Professional 28X Digital Level Measuring Instrument Foif El28 Auto Level Survey Instrument

EL28 can replace tradition optical level with high quality but lower price.

Easy one-touch operation with trigger key to get dH and HD displayed on screen almost instantly, you can enjoy survey work freely.

Product Feature
Convenient and practical electronic level, just one click to get the height and distance to be measured.
Convenient in engineering applications, its working efficiency and traditional level measurement takes less time.
Digital display, intuitive reading, can easily get the height difference between two measurements, can avoid unnecessary reading errors.
Electronic level compensator checking technology; greatly improve the level measurement accuracy, stability low power consumption, single battery can meet the work needs for more than a week; the whole machine has a small form design.

28X Digital Transit Automatic Level Measuring Instrument Foif EL28

Specification

Model	EL28
Accuracy
Standard deviation of km double run
Electronic measurement	+/-1.5mm*
Optical measurement	+/- l.5mm*
Electronic measurement
Time for single measurement	≤2s
Range	2-80m
Measurement modes	Singel, tracking
Display resolution(m/in selectable)
Height	1mm/0.01ft
Distance	10mm/0.1ft
Telescope
Clear objective aperature	45mm
Magnification	28x
Field of view at 100m	2.6m
Shortest focus distance	0.8m
Automatic compensator
Working range	15'
Setting accuracy	+/-0.4"
Power
Battery	2000mAh Ni-MH rechargeable
Continuous operating time	60 hours
Measurement programs
On-board programs	DH,inverse staff measurement I error checking and adjustment
Others
Display	Segment display
Keyboard	Function key board,6 keys
Interface	RS232
Sensitivity of circular level	8'/2mm
Water and dusp protection	IP54
Operating temperature	-20°C~50°C
Net weight	2kg
