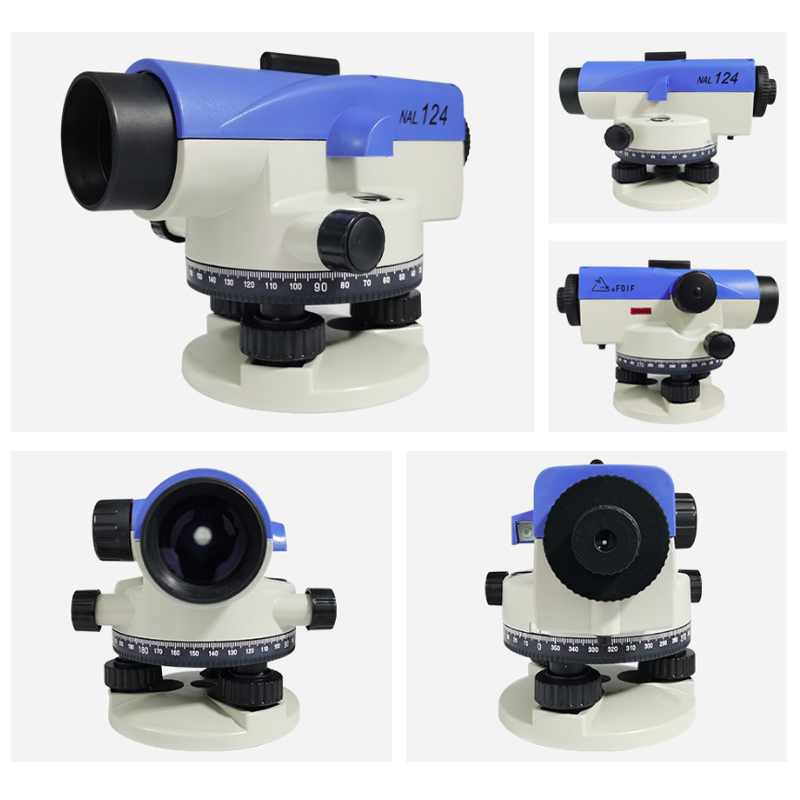

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Ask Lasest Price
    Brand Name : FOIF
    Model Number : NAL124
    Price : $165
    Payment Terms : T/T, L/C
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Product Description

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Specifications

    Magnification 24X
    Standard deviation per kilometer double-run ±2.0mm
    Setting accuracy(standard deviation) <0.5"
    Compensator working scope ≥±15
    Telescope imaging Erect
    Clear objective aperture 36mm
    Field of view at 100m >3.2m
    Shortest focusing distance 0.5m
    Stadia multiplication constant 100
    Stadia additive constan 0
    Circular bubble precision 8′/2mm

    Graduation

    360 or 400gon
    Interval 1 or 1gon
    Adoption (Base Plate) Flat and Dome
    Central fixing screw W 5/8" (55°)
    Storage temperature -40℃ to +75℃
    Operating temperature -30℃ to +50℃
    Water and dust resistance IP55
    Weight without container 2.0kg

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

    Usage
    , Instrument Installation
    1,Adjust the tripod to the human eye level position, tighten the screws.
    2,Adjust the tripod roughly horizontal, the tripod fixed on the ground
    3,Mount the instrument on the tripod and tighten the centre screw.
    4
    ,adjust the foot screw handwheel, so that the blister is centred.
    , the blister levelling method
    1,Adjust the instrument foot screw handwheel, so that the blister is centred.
    2
    ,screw the foot screw handwheel, so that the bubble to the centre of the scribing circle to move 1/2
    3
    ,the use of hexagonal wrench to adjust the bubble screw, so that the bubble moved to the centre
    4,Repeat the above steps until the telescope turned to any direction of the circle water bubble is always in the centre.
    5
    , the instrument turned 180 ° original blister should be in the centre, otherwise it must be corrected.
