| Brand Name : | FOIF |
| Model Number : | EL302A |
| Price : | ＄1150,00 |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 30 work day |
Far measuring range: ≤110m
Accuracy: EL302A ≤±0.7mm
Reliable reading, even in dim light conditions
Remote control measurement by bluetooth
Onboard programs, such as BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate
LCD display presents all important measured data at a glance and shows the next step to take
Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
Quick height and distance result- the reading is displayed almost instantly with measurement
LCD display, with illumination
Alphanumeric keyboard, 24keys
Automatic height and delta height calculation
Optical reading is available
Internal memory(3000points) or SD card for data storage, supports USB, RS-232C ports and Bluetooth for data transfer
Specification
| Accuracy | |
| Electronic measurement | ±0.7mm |
| optical measurement | ±1.5mm |
| Distance measurement | D10m: ±0.2%*D |
| Electronic measurement
| |
| time for single measurement | ≤2s |
| Range | 2-105m |
| Measurement modes | Single, average, tracking |
| Display resolution(m/inch selectable) | |
| Height | 0.01mm/0.00001ft |
| Distance | 1mm/0.001ft |
| Telescope | |
| Clear objective aperture | 45mm |
| Magnification | 30x |
| Field of view at 100m | 2.6m |
| Shortest focus distance | 1.0m |
| Automatic compensator
| |
| Working range | 14' |
| Setting accuracy | ±0.5" |
|
Power | |
| Battery | 2000mAh Ni-MH rechargeable |
| Continuous operation time | 12hours |
|
Measurement programs | |
| On-board programs | BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate |
| Onboard adjustment | Yes |
|
Others | |
| Memory | 3000points, supports SD card |
| Display | LCD, 7 lines*32characters |
| Keyboard | Alphanumerical key board |
| Interface | USB, RS-232C optional, Bluetooth |
| Sensitivity of circular level | 8'/2mm |
| Water and dust protection | IP54 |
| Operating Temp | -20℃~+50℃ |
| Net Weight | 3kg |
32x magnification objective lens imaging positive image

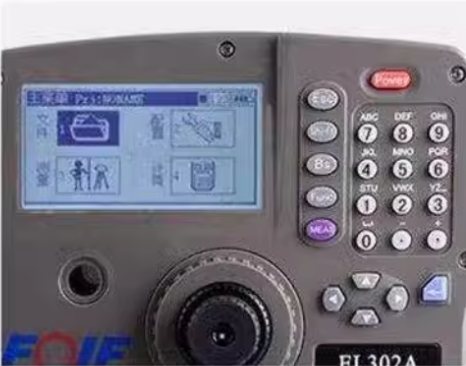

All-number keys, graphic window displays before and after measurement data simultaneously
Clear eyepieces to fine-tune the object to be measured more clearly
Micro-adjustment of the handwheel for more accurate data during measurement
