    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    Ask Lasest Price
    Brand Name : FOIF
    Model Number : NAL224
    Price : $180
    Payment Terms : T/T, L/C
    Delivery Time : 30 work day
    • Product Details
    • Company Profile

    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    Product Paramenters

    High Definition 24x Lens
    24x HD positive image, clear image, simple and easy to operate
    How far can I see with a 24x level?
    A level is a telescope with a cross-hair that can be kept horizontal. Magnification refers to the rate at which a distant object is ‘brought closer’.


    Precision Damping Compensator
    The accuracy of the instrument is determined by the compensator, only the reasonable structure of the compensator can ensure the accuracy and stability of the instrument.


    Steel centre shaft is not easy to deform
    The FOIF level adopts a steel centre shaft, which is strong and not easy to be deformed, thus prolonging the service life of the instrument.

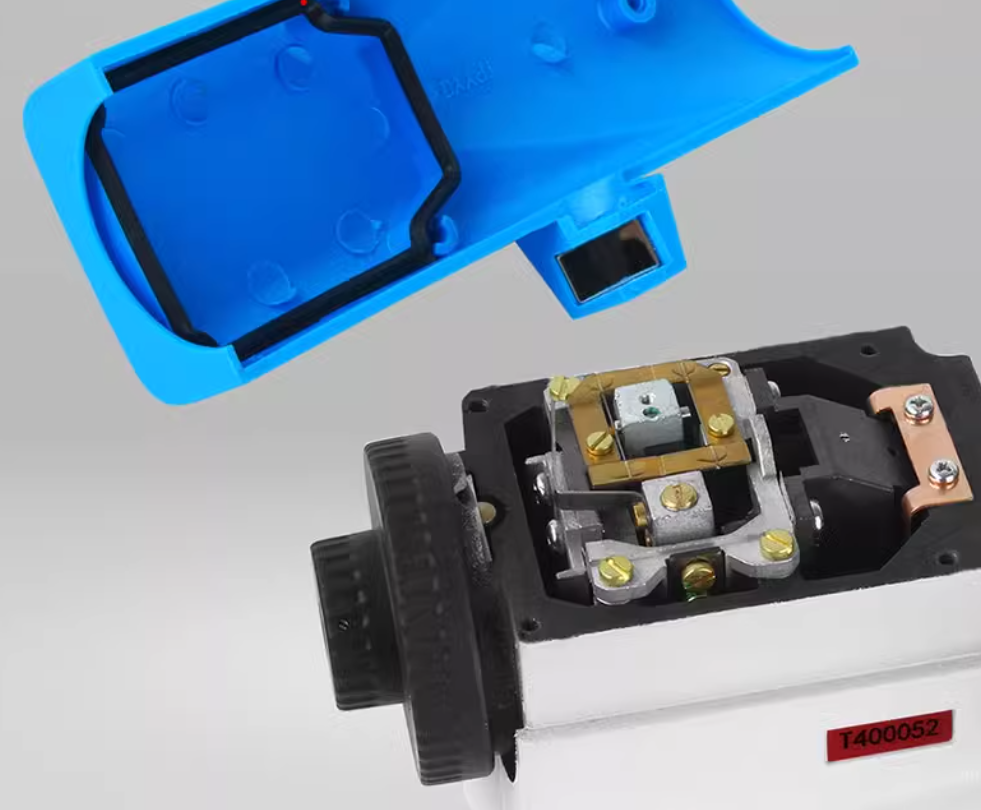

    Sealed protection movement
    The sealing ring prevents water and dust from entering the machine, eroding the compensator and damaging the machine.


    Sturdy metal base

    The base has a 5/8’ threaded connector, which can be connected to a levelling tripod for easy measurement.

    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened CompensatorFOIF NAL224 24X Laser Automatic Level With Magnetic Dampened CompensatorFOIF NAL224 24X Laser Automatic Level With Magnetic Dampened CompensatorFOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    FOIF NAL232 Auto Level with Magnetic Dampened Compensator Auto Level Technical parameter
    Standard deviation of measurement height difference per kilometer round trip
    ≤±1.0mm
    Telescopic imaging
    Positive image
    Telescope magnification
    24
    Objective aperture
    40mm
    Short visual range
    1m
    Multiplying constant
    100
    Compensator operating range
    ±15'
    Leveling accuracy
    ±0.4”
    Sensitivity of circular level
    8'/2mm
    Index diameter of the dial
    109mm
    The dial is optional
    360°
    Indexing interval
    weight
    2kg
    Operating temperature
    -10℃~45℃

    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    Certifications
    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator
    Company Profile
    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator

    FAQ

    1. who are we?
    We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
    Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
    Europe(4.00%). There are total about 11-20 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

    4. why should you buy from us not from other suppliers?
    1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
    sending out and all products have one year warranty.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

    Our Service
    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator
    Packing & Delivery
    FOIF NAL224 24X Laser Automatic Level With Magnetic Dampened Compensator
