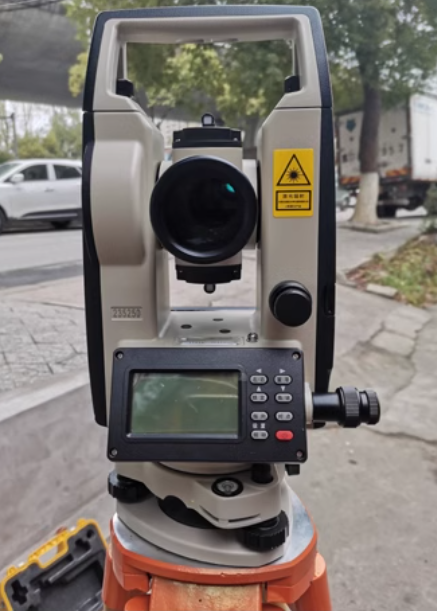

Simple operation 2'' Angle Accuracy 1000m eter visible laser NT-02D SOUTH theodolite
| | Image | Erect |
| Magnification | 26.5x |
| Effective Aperture | 152mm |
| Resolving Power | 3″ |
| Field of view | 1°30′ |
| Minimum Focus Range | 1.5m |
| Multiple Constant | 100 |
| Additive Constant | 0 |
| Stadia Accuracy | ≤0.40%/L |
| Tube Length | 155mm |
| | Measuring Method | Absolute Encoding |
| Dia. of Encoder Disk | 79mm |
| Minimum Reading | 1″ |
| Accuracy | 2″ |
| Detection Method | Horizontal: Dual, Vertical: Dual |
| | Type | Single Axis |
| Working Range | ±3′ |
| Accuracy | ±3″ |
| | Accuracy | ±1.5mm(@1.5m) |
| Spot Diameter | ±2.5mm(@1.5m) |
| Wave Length | 635±20mm |
| Display Unit | Type | 2.6 Inch,160*96 LCD Screen |
| Power Supply | Battery | 7.4V Lithium Rechargeable Battery |
| Environment | Working Range | ﹣20℃ ～﹢50℃ |
| Dimension | Size | 165 × 160 × 340 (mm) |
| Weight | 4.7kg |
Product Features
★1000m ultra-long distance visual laser.
★Support external power adapter, can be directly powered by charger.
●Information symbols at a glance.
●The keys are simple and easy to operate.
●The bead system eliminates stuck axes.
●Lithium battery and dry battery with the use of.
●Independent laser light path, high stability.
●Scientific and rationalised design of appearance and internal structure.
●Laser intensity is divided into strong and weak gears to adapt to a variety of environments.
Product Accessory Information Table
| No. | Name | Quantity | Remark |
| 1 | Case | 1 pc | |
| 2 | Main body | 1 pc | |
| 3 | Lithium Battery | 1 pc | |
| 4 | Battery Back Cover | 1 pc | |
| 5 | Charger | 1 pc | |
| 6 | Drying Agent | 1 pc | |
| 7 | Certificate | 1 pc | |
| 8 | User Guide | 1 pc | |
